Exterior trim / grill for BMW 3 Series E21 320i (1982)

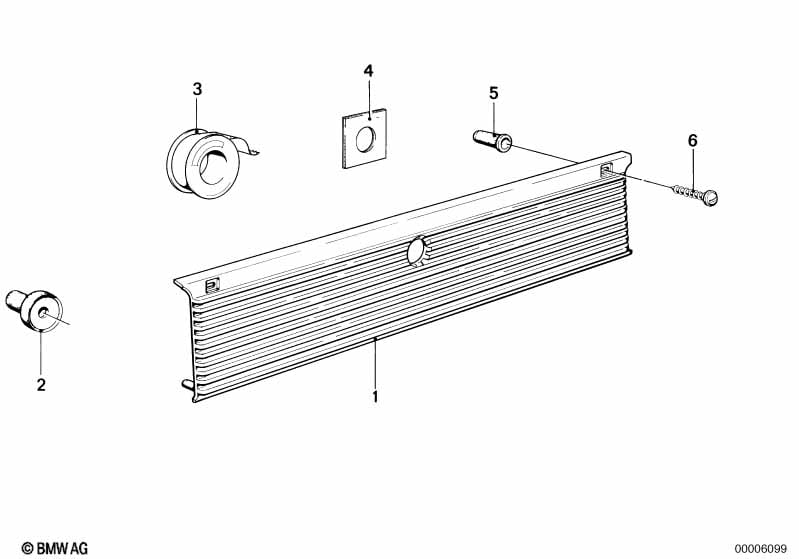

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover | 1 | 51131843090 | $59.91 | ENDED | Shop at ECS Tuning | ||||
| 02 | Grommet | 2 | 51131851587 | $0.42 | ENDED | Shop at ECS Tuning | ||||
| 03 | Adhesive tape | X | 51131851360 | $3.36 | ENDED | Shop at ECS Tuning | ||||
| 04 | Base | 1 | 51131851078 | $0.73 | Shop at ECS Tuning | |||||
| 05 | Grommet | 12X6,3 | 2 | 51131840154 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Fillister head self-tapping screw | ST3,9X13 | 2 | 07147202502 | $0.26 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Exterior trim / grill?
- This technical diagram illustrates the Exterior trim / grill within the Vehicle trim group for the 3 Series E21 320i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Cover (Part #51131843090).
- Which models use the hardware listed in this Exterior trim / grill?
- The hardware and components featured in the Exterior trim / grill are specific to the 3 Series E21 320i produced during 1982. These technical specifications ensure that parts like the Cover (51131843090) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exterior trim / grill assembly?
- Each item in the Exterior trim / grill corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Cover by locating its position on the schematic, which then links to the official BMW part number 51131843090 for the Vehicle trim section.
