Moulding drip moulding for BMW 3 Series E21 316 (1983)

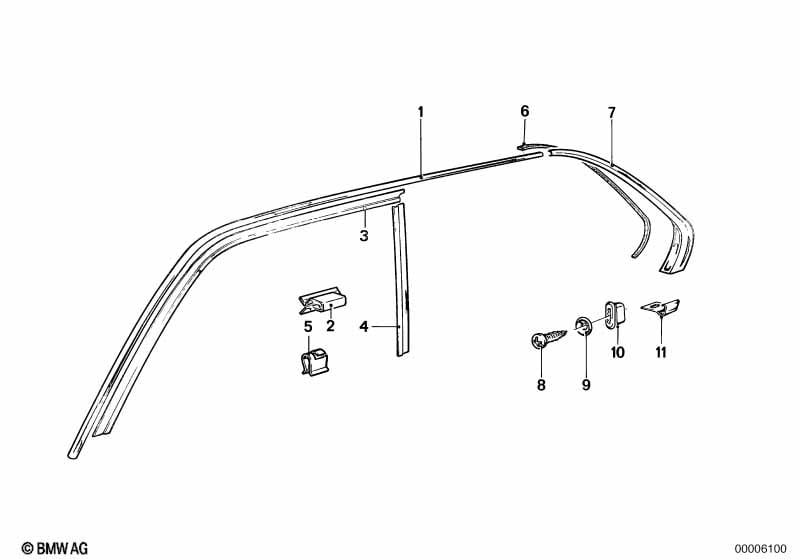

This Moulding drip moulding technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Water deflector front left | 1 | 51131827451 | $118.30 | ENDED | Shop at ECS Tuning | ||||
| 01 | Water deflector front right | 1 | 51131827452 | $118.30 | ENDED | Shop at ECS Tuning | ||||
| 02 | Clamp | X | 51131863499 | $0.23 | Shop at ECS Tuning | |||||
| 03 | Moulding window frame left | 1 | 51321823391 | $77.61 | ENDED | Shop at ECS Tuning | ||||
| 03 | Moulding window frame right | 1 | 51321823392 | $77.61 | ENDED | Shop at ECS Tuning | ||||
| 04 | Moulding window frame left | 1 | 51321834597 | $27.27 | Shop at ECS Tuning | |||||
| 04 | Moulding window frame right | 1 | 51321834598 | $27.30 | Shop at ECS Tuning | |||||
| 05 | Clamp | X | 51321831479 | $1.61 | Shop at ECS Tuning | |||||
| 06 | Adhesive tape | X | 51131851360 | $3.36 | ENDED | Shop at ECS Tuning | ||||
| 07 | Molding left | 1 | 51131835727 | $163.54 | ENDED | Shop at ECS Tuning | ||||
| 07 | Molding right | 1 | 51131835728 | $163.54 | ENDED | Shop at ECS Tuning | ||||
| 08 | Recessed oval head sheet-metal screw | ST2,9X13 | 8 | 07119902412 | $1.30 | Shop at ECS Tuning | ||||
| 09 | Hollow washer | 8 | 51417570111 | $1.64 | Shop at ECS Tuning | |||||
| 10 | Grommet | 12X6,3 | 8 | 51131840154 | $0.47 | Shop at ECS Tuning | ||||
| 11 | Moulding joint left | 1 | 51131844035 | $7.04 | ENDED | Shop at ECS Tuning | ||||
| 11 | Moulding joint right | 1 | 51131844036 | $7.04 | Shop at ECS Tuning |
