Moulding drip moulding for BMW 5 Series E12 528i (1981)

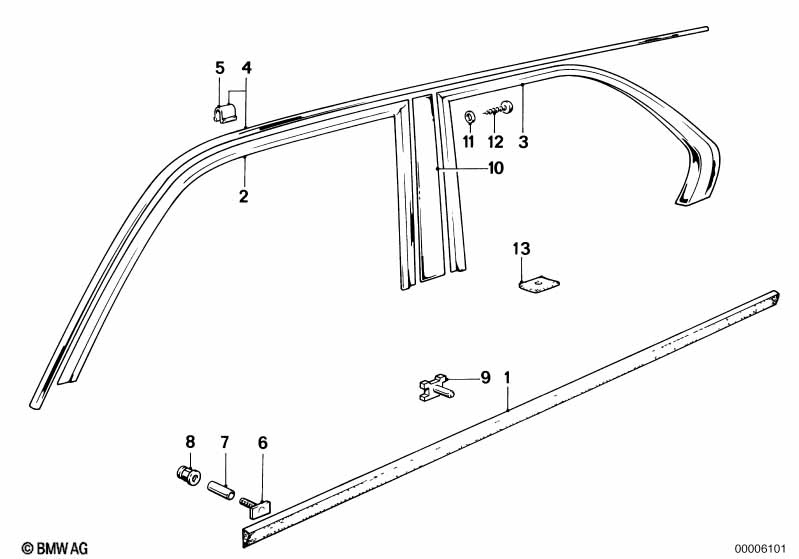

This Moulding drip moulding technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulding rocker panel left | 1 | 04/1980 | 51131873617 | $109.60 | ENDED | Shop at ECS Tuning | |||
| 01 | Moulding rocker panel right | 1 | 04/1980 | 51131873618 | $109.60 | ENDED | Shop at ECS Tuning | |||
| 02 | Covering left | 1 | 51321808835 | $110.44 | Shop at ECS Tuning | |||||
| 02 | Covering right | 1 | 51321808836 | $110.44 | ENDED | Shop at ECS Tuning | ||||
| 03 | Covering left | 1 | 51341808909 | $120.51 | ENDED | Shop at ECS Tuning | ||||
| 03 | Covering right | 1 | 51341808910 | $120.51 | Shop at ECS Tuning | |||||
| 04 | Moulding roof left | 1 | 51131817443 | $227.44 | ENDED | Shop at ECS Tuning | ||||
| 04 | Moulding roof right | 1 | 51131817444 | $75.33 | ENDED | Shop at ECS Tuning | ||||
| 05 | Clamp | 8 | 51131863499 | $0.23 | Shop at ECS Tuning | |||||
| 08 | Cap nut | M4 | 4 | 41335480120 | $0.20 | Shop at ECS Tuning | ||||
| 09 | Clip | X | 04/1980 | 51131808841 | $1.21 | Shop at ECS Tuning | ||||
| 10 | Covering left | 1 | 08/1979 | 51131874087 | $61.43 | ENDED | Shop at ECS Tuning | |||
| 10 | Covering right | 1 | 08/1979 | 51131874088 | $61.43 | ENDED | Shop at ECS Tuning | |||
| 11 | Hollow washer | 2 | 51417570111 | $1.64 | Shop at ECS Tuning | |||||
| 12 | Recessed oval head sheet-metal screw | ST2,9X13 | 6 | 07119902412 | $1.30 | Shop at ECS Tuning |
