Exterior trim / grill for BMW 6 Series E24 633CSi

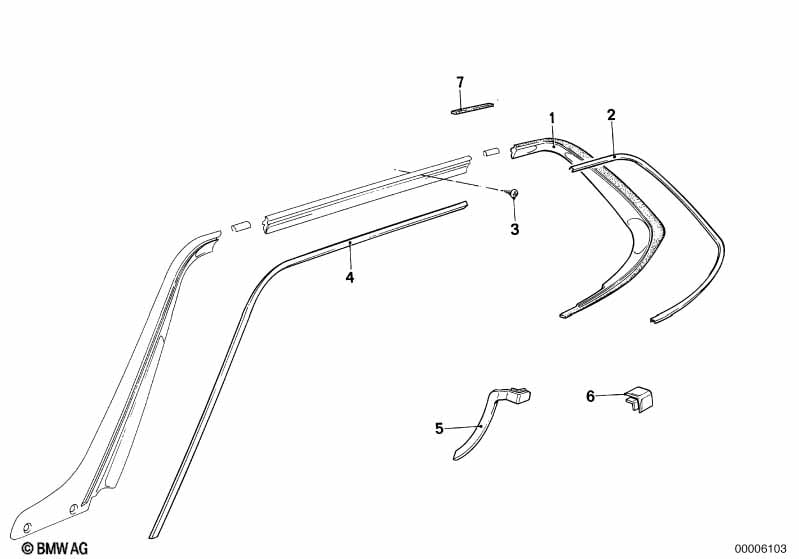

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Water deflector rear left | 1 | 09/1977 | 51131869625 | $185.26 | ENDED | Shop at ECS Tuning | |||
| 01 | Water deflector rear right | 1 | 09/1977 | 51131869626 | $521.33 | ENDED | Shop at ECS Tuning | |||
| 02 | Moulding left | 1 | 51131839947 | $113.73 | ENDED | Shop at ECS Tuning | ||||
| 02 | Moulding right | 1 | 51131839948 | $113.73 | ENDED | Shop at ECS Tuning | ||||
| 03 | Csk.lenshead screw | ST2,9X9,5 | X | 07119902205 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Moulding left | 1 | 51131839945 | $113.73 | Shop at ECS Tuning | |||||
| 04 | Moulding right | 1 | 51131839946 | $113.73 | ENDED | Shop at ECS Tuning | ||||
| 06 | Moulding joint left | 1 | 09/1977 | 51371869205 | $18.06 | ENDED | Shop at ECS Tuning | |||
| 06 | Moulding joint right | 1 | 09/1977 | 51371869206 | $15.81 | ENDED | Shop at ECS Tuning | |||
| 07 | Moulding joint | X | 51131962424 | $14.71 | ENDED | Shop at ECS Tuning |
