Moulding drip moulding for BMW 7 Series E23 728 (1979)

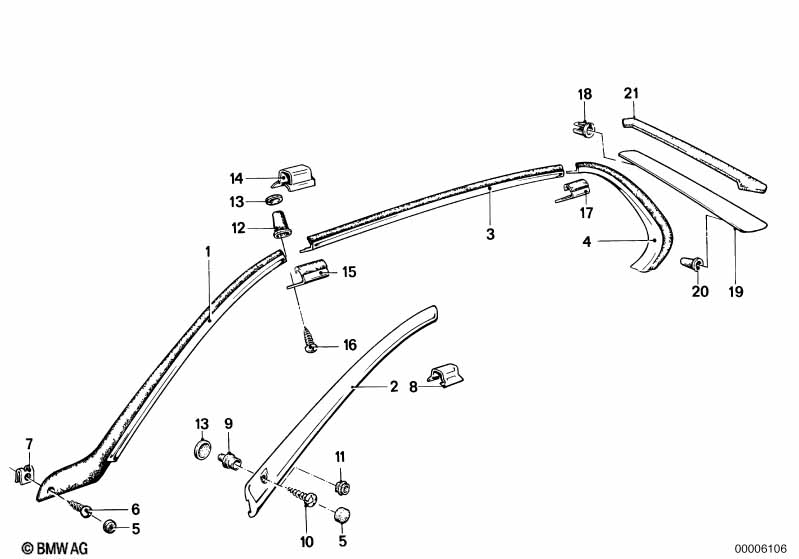

This Moulding drip moulding technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulding left | 1 | 04/1983 | 51131848797 | $101.93 | Shop at ECS Tuning | ||||
| 01 | Moulding right | 1 | 04/1983 | 51131848798 | $111.60 | ENDED | Shop at ECS Tuning | |||
| 03 | Moulding roof left | 1 | 51131848795 | $80.88 | Shop at ECS Tuning | |||||
| 03 | Moulding roof right | 1 | 51131848796 | $80.88 | Shop at ECS Tuning | |||||
| 04 | Moulding left | 1 | 01/1985 | 51131848799 | $108.35 | ENDED | Shop at ECS Tuning | |||
| 04 | Moulding right | 1 | 01/1985 | 51131848800 | ENDED | Shop at ECS Tuning | ||||
| 05 | Plug | 4 | 51131854893 | $1.39 | Shop at ECS Tuning | |||||
| 06 | Fillister head self-tapping screw | ST3,9X13 | 4 | 04/1983 | 07119907720 | $2.09 | Shop at ECS Tuning | |||
| 07 | Body nut | B3,9 | 4 | 04/1983 | 51131914097 | $1.03 | Shop at ECS Tuning | |||
| 11 | Clamp | X | 51131921488 | ENDED | Shop at ECS Tuning | |||||
| 12 | Grommet | 12X6,3 | X | 51131840154 | $0.47 | Shop at ECS Tuning | ||||
| 13 | Gasket | X | 51131858962 | $0.13 | ENDED | Shop at ECS Tuning | ||||
| 13 | Gasket | X | 51131904479 | $0.30 | Shop at ECS Tuning | |||||
| 14 | Clamp | X | 51131863499 | $0.23 | Shop at ECS Tuning | |||||
| 15 | Cup | 2 | 51131858956 | $7.93 | ENDED | Shop at ECS Tuning | ||||
| 16 | Recessed oval head sheet-metal screw | ST2,9X13 | X | 07119902412 | $1.30 | Shop at ECS Tuning | ||||
| 17 | Cup | 2 | 51131847435 | $7.93 | ENDED | Shop at ECS Tuning | ||||
| 18 | Grommet | 8 | 51141852899 | $1.84 | Shop at ECS Tuning | |||||
| 18 | Grommet | 6 | 51145480184 | $3.07 | ENDED | Shop at ECS Tuning | ||||
| 19 | Moulding air outlet rear left | 1 | 51131860045 | $65.22 | ENDED | Shop at ECS Tuning | ||||
| 19 | Moulding air outlet rear right | 1 | 51131860046 | $65.22 | ENDED | Shop at ECS Tuning | ||||
| 20 | Grommet | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| 20 | Grommet | 2 | 51141852899 | $1.84 | Shop at ECS Tuning | |||||
| 21 | sealing | 2 | 51131915695 | $5.11 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728 Moulding drip moulding?
- This technical diagram illustrates the Moulding drip moulding within the Vehicle trim group for the 7 Series E23 728 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Moulding left (Part #51131848797).
- Which models use the hardware listed in this Moulding drip moulding?
- The hardware and components featured in the Moulding drip moulding are specific to the 7 Series E23 728 produced during 1979. These technical specifications ensure that parts like the Moulding left (51131848797) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Moulding drip moulding assembly?
- Each item in the Moulding drip moulding corresponds to the numbered list below the illustration. For the 7 Series E23 728, you can identify the Moulding left by locating its position on the schematic, which then links to the official BMW part number 51131848797 for the Vehicle trim section.
