Window mounting parts for BMW 3 Series E21 320 (1977)

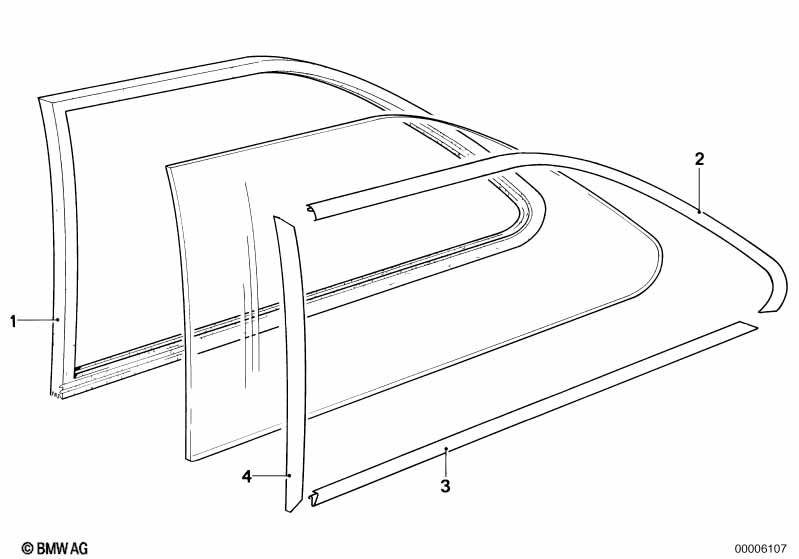

This Window mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window sealing rear left | 1 | 51361881487 | $99.39 | Shop at ECS Tuning | |||||
| 01 | Window sealing rear right | 1 | 51361881488 | $105.94 | Shop at ECS Tuning | |||||
| 02 | Moulding upper left | 1 | 51361840909 | $85.76 | Shop at ECS Tuning | |||||
| 02 | Moulding upper right | 1 | 51361840910 | $85.76 | Shop at ECS Tuning | |||||
| 03 | Moulding lower left | 1 | 51361840911 | $80.21 | Shop at ECS Tuning | |||||
| 03 | Moulding lower right | 1 | 51361840912 | $79.26 | ENDED | Shop at ECS Tuning | ||||
| 04 | Moulding front left | 1 | 51361840907 | $132.14 | Shop at ECS Tuning | |||||
| 04 | Moulding front right | 1 | 51361840908 | $132.14 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
