Rear window weather strip for BMW 6 Series E24 628CSi (1987)

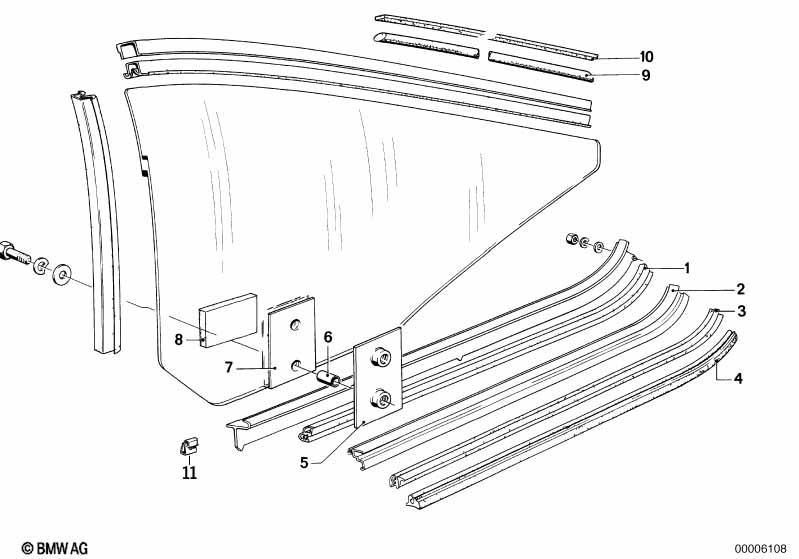

This Rear window weather strip technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | sealing | 2 | 51361839329 | $47.73 | Shop at ECS Tuning | |||||
| 02 | Door weather strip outer left | 1 | 08/1977 | 51371871737 | $269.56 | Shop at ECS Tuning | ||||
| 02 | Door weather strip outer right | 1 | 08/1977 | 51371871738 | $269.56 | Shop at ECS Tuning | ||||
| 02 | Door weather strip outer left | SCHWARZ | 1 | 08/1977 | 51371961665 | $176.89 | Shop at ECS Tuning | |||
| 02 | Door weather strip outer right | SCHWARZ | 1 | 08/1977 | 51371961666 | $139.27 | Shop at ECS Tuning | |||
| 03 | Edge protection left | 1 | 51721839501 | $403.08 | ENDED | Shop at ECS Tuning | ||||
| 03 | Edge protection right | 1 | 51721839502 | $403.08 | ENDED | Shop at ECS Tuning | ||||
| 04 | Rubber seal | X | 51211870067 | $14.00 | Shop at ECS Tuning | |||||
| 05 | Guide plate | 2 | 51371839346 | $12.80 | Shop at ECS Tuning | |||||
| 06 | Bush | 4 | 51321843633 | $3.06 | Shop at ECS Tuning | |||||
| 07 | Rubber washer | 2 | 51371839345 | $19.87 | Shop at ECS Tuning | |||||
| 08 | Rubber washer | 4 | 51371839912 | $0.42 | Shop at ECS Tuning | |||||
| 09 | Filling rubber | 2 | 51211864228 | $29.41 | ENDED | Shop at ECS Tuning | ||||
| 10 | Rubber seal | 2 | 54121852346 | $6.51 | ENDED | Shop at ECS Tuning | ||||
| 11 | Clamp | X | 51361859970 | $3.90 | Shop at ECS Tuning |
