Moulding window frame front for BMW 7 Series E23 728i (1982)

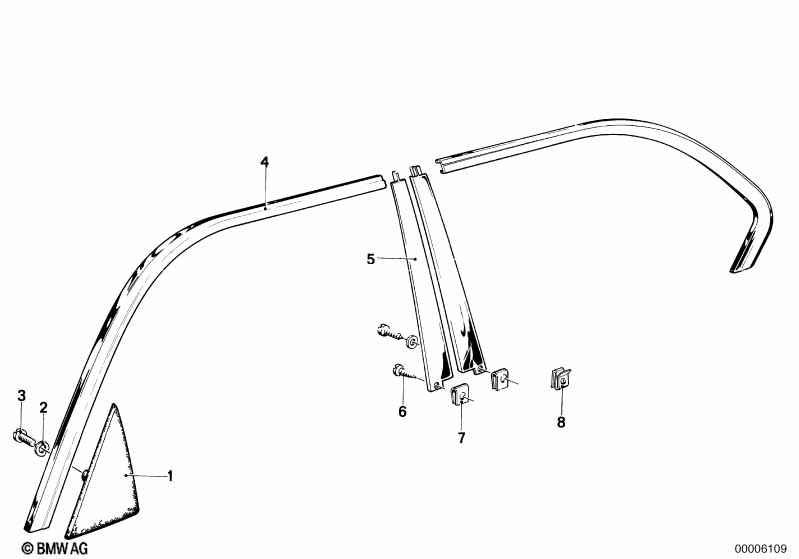

This Moulding window frame front technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Corner moulding, left | 1 | 09/1982 | 51321900243 | $17.50 | Shop at ECS Tuning | ||||
| 01 | Corner moulding, left | 1 | 09/1982 | 51321900243 | $17.50 | Shop at ECS Tuning | ||||
| 01 | Corner moulding, right | 1 | 09/1982 | 51321900244 | $17.83 | Shop at ECS Tuning | ||||
| 01 | Corner moulding, right | 1 | 09/1982 | 51321900244 | $17.83 | Shop at ECS Tuning | ||||
| 02 | Washer | 10X5,3X1-200 HV | 2 | 09/1982 | 07119904206 | Shop at ECS Tuning | ||||
| 02 | Washer | 10X5,3X1-200 HV | 2 | 09/1982 | 07119904206 | Shop at ECS Tuning | ||||
| 02 | Washer | 5.3-140 HV-ZNS | 2 | 09/1982 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 02 | Washer | 5.3-140 HV-ZNS | 2 | 09/1982 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 03 | Hex bolt | M5X8 | 2 | 09/1982 | 07119913212 | $0.25 | Shop at ECS Tuning | |||
| 03 | Hex bolt | M5X8 | 2 | 09/1982 | 07119913212 | $0.25 | Shop at ECS Tuning | |||
| 04 | Moulding window frame left | 1 | 51321850863 | $52.75 | Shop at ECS Tuning | |||||
| 04 | Moulding window frame right | 1 | 51321850864 | $52.75 | ENDED | Shop at ECS Tuning | ||||
| 04 | Moulding window frame left | SCHWARZ | 1 | 51321959715 | ENDED | Shop at ECS Tuning | ||||
| 04 | Moulding window frame right | SCHWARZ | 1 | 51321959716 | $88.72 | ENDED | Shop at ECS Tuning | |||
| 05 | Moulding black window frame left | 1 | 51321846553 | $43.33 | Shop at ECS Tuning | |||||
| 05 | Moulding black window frame right | 1 | 51321846554 | $43.33 | Shop at ECS Tuning | |||||
| 06 | Sheet metal screw | 2 | 51321857009 | $0.56 | Shop at ECS Tuning | |||||
| 07 | Body nut | 2 | 51321866005 | $1.41 | Shop at ECS Tuning | |||||
| 08 | Clamp | 2 | 51341902948 | $0.50 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
