Moulding window frame rear for BMW 7 Series E23 728 (1979)

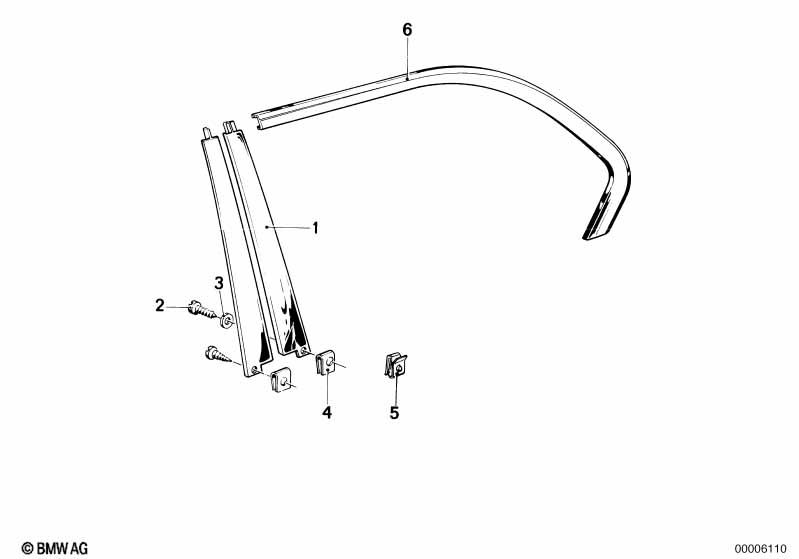

This Moulding window frame rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulding black window frame left | 1 | 51341846557 | $36.11 | Shop at ECS Tuning | |||||
| 01 | Moulding black window frame right | 1 | 51341846558 | $36.11 | ENDED | Shop at ECS Tuning | ||||
| 02 | Sheet metal screw | 2 | 51341857138 | $0.56 | Shop at ECS Tuning | |||||
| 03 | Washer | 2 | 51341857137 | ENDED | Shop at ECS Tuning | |||||
| 04 | Body nut | 2 | 51321866005 | $1.41 | Shop at ECS Tuning | |||||
| 05 | Clamp | 2 | 51341902948 | $0.50 | ENDED | Shop at ECS Tuning | ||||
| 06 | Moulding window frame left | 1 | 51341850865 | $89.60 | Shop at ECS Tuning | |||||
| 06 | Moulding window frame right | 1 | 51341850866 | $89.60 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728 Moulding window frame rear?
- This technical diagram illustrates the Moulding window frame rear within the Vehicle trim group for the 7 Series E23 728 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Moulding black window frame left (Part #51341846557).
- Which models use the hardware listed in this Moulding window frame rear?
- The hardware and components featured in the Moulding window frame rear are specific to the 7 Series E23 728 produced during 1979. These technical specifications ensure that parts like the Moulding black window frame left (51341846557) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Moulding window frame rear assembly?
- Each item in the Moulding window frame rear corresponds to the numbered list below the illustration. For the 7 Series E23 728, you can identify the Moulding black window frame left by locating its position on the schematic, which then links to the official BMW part number 51341846557 for the Vehicle trim section.
