Licence plate base for BMW 6 Series E24 633CSi

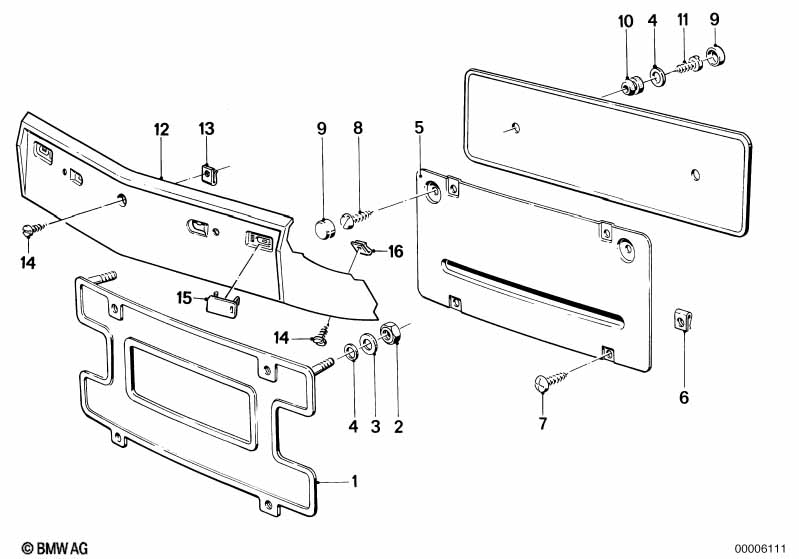

This Licence plate base technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Rubber washer | 6 | 51185480151 | $0.57 | Shop at ECS Tuning | |||||
| 05 | Registration plate mounting | 1 | 51181855952 | $15.20 | Shop at ECS Tuning | |||||
| 06 | Plug-in nut | M5 | 4 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 07 | Fillister head self-tapping screw | ST4,8X13 | 4 | 07149147132 | Shop at ECS Tuning | |||||
| 08 | Fillister head self-tapping screw | ST6,3X32 | 2 | 07119906797 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Covering cap | WEISS | 4 | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 09 | Covering cap | SCHWARZ | 4 | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 09 | Covering cap | DUNKELBLAU | 4 | 64111375497 | $0.20 | Shop at ECS Tuning | ||||
| 10 | Plug-in nut | 4 | 51181852299 | $0.23 | Shop at ECS Tuning | |||||
| 11 | Fillister head self-tapping screw | ST4,8X16MM | 4 | 07143448498 | $0.18 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Licence plate base?
- This technical diagram illustrates the Licence plate base within the Vehicle trim group for the 6 Series E24 633CSi. It provides a detailed exploded view of the components, identifying key parts such as the Rubber washer (Part #51185480151).
- Which models use the hardware listed in this Licence plate base?
- The hardware and components featured in the Licence plate base are specific to the 6 Series E24 633CSi. These technical specifications ensure that parts like the Rubber washer (51185480151) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Licence plate base assembly?
- Each item in the Licence plate base corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Rubber washer by locating its position on the schematic, which then links to the official BMW part number 51185480151 for the Vehicle trim section.
