Exterior trim / grill for BMW 5 Series E28 535i (1981)

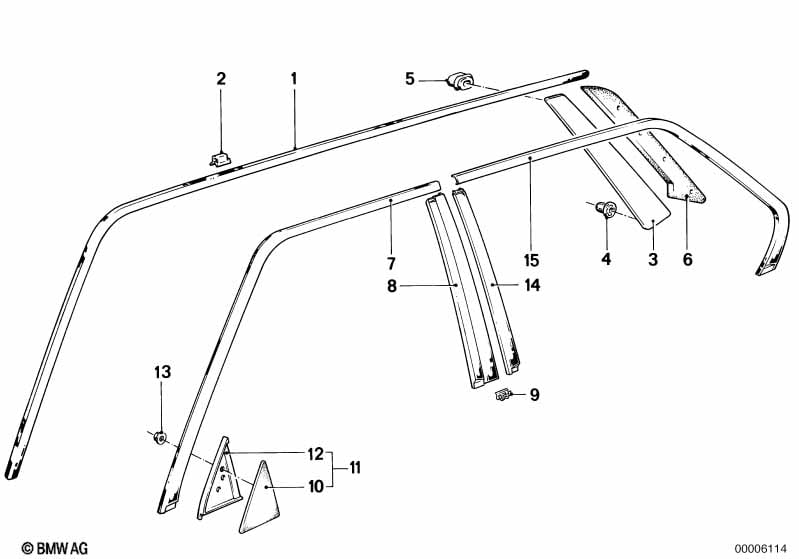

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulding roof left | 1 | 51131817443 | $227.44 | ENDED | Shop at ECS Tuning | ||||
| 01 | Moulding roof right | 1 | 51131817444 | $75.33 | ENDED | Shop at ECS Tuning | ||||
| 02 | Clamp | 8 | 51131863499 | $0.23 | Shop at ECS Tuning | |||||
| 03 | Moulding air outlet rear left | 1 | 51131917997 | $83.52 | Shop at ECS Tuning | |||||
| 03 | Moulding air outlet rear right | 1 | 51131917998 | $83.52 | Shop at ECS Tuning | |||||
| 04 | Grommet | 2 | 51141852899 | $1.84 | Shop at ECS Tuning | |||||
| 05 | Insert | 10X7 | 8 | 51131870459 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Rubber seal | 2 | 51131909501 | $5.41 | ENDED | Shop at ECS Tuning | ||||
| 07 | Covering left | 1 | 51321872313 | $61.09 | ENDED | Shop at ECS Tuning | ||||
| 07 | Covering right | 1 | 51321872314 | $61.09 | Shop at ECS Tuning | |||||
| 08 | Covering left | 1 | 51321872315 | $36.86 | Shop at ECS Tuning | |||||
| 08 | Covering right | 1 | 51321872316 | $36.86 | Shop at ECS Tuning | |||||
| 09 | Clamp | X | 51321874017 | $0.17 | Shop at ECS Tuning | |||||
| 11 | Corner moulding, left | 1 | 51321925891 | $25.11 | ENDED | Shop at ECS Tuning | ||||
| 13 | Hex nut with plate | M5 | 2 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 14 | Covering left | 1 | 51341872317 | $14.77 | Shop at ECS Tuning | |||||
| 14 | Covering right | 1 | 51341872318 | $14.77 | ENDED | Shop at ECS Tuning | ||||
| 15 | Covering left | 1 | 51341872319 | $66.25 | Shop at ECS Tuning | |||||
| 15 | Covering right | 1 | 51341872320 | $66.25 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
