Mould.rock.panel-fender/door/covering for BMW 7 Series E23 728 (1978)

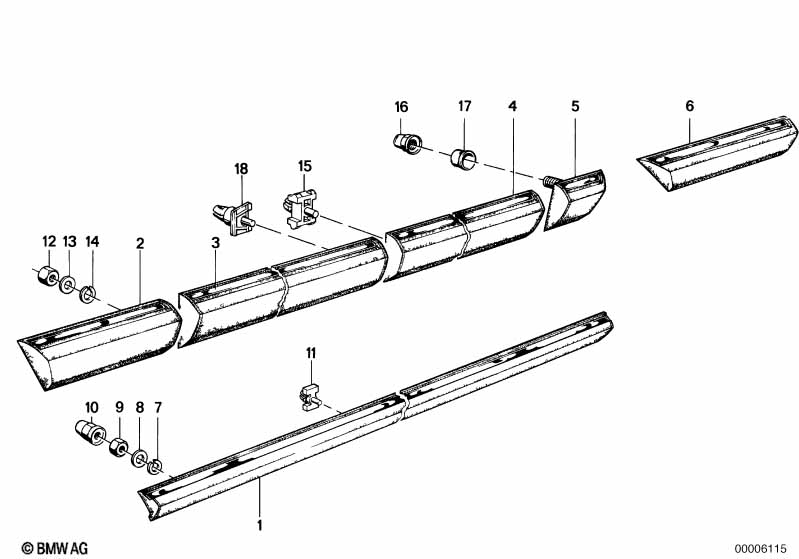

This Mould.rock.panel-fender/door/covering technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Moulding fender front left | 1 | 51131848301 | $48.86 | ENDED | Shop at ECS Tuning | ||||
| 02 | Moulding fender front right | 1 | 51131848302 | $48.86 | Shop at ECS Tuning | |||||
| 03 | Moulding door front left | 1 | 09/1982 | 51131848303 | $52.90 | Shop at ECS Tuning | ||||
| 03 | Moulding door front right | 1 | 09/1982 | 51131848304 | $52.90 | ENDED | Shop at ECS Tuning | |||
| 04 | Moulding door rear left | 1 | 09/1982 | 51131848305 | $52.34 | Shop at ECS Tuning | ||||
| 04 | Moulding door rear right | 1 | 09/1982 | 51131848306 | $52.34 | Shop at ECS Tuning | ||||
| 05 | Moulding fender rear left | 1 | 51131848307 | $48.36 | Shop at ECS Tuning | |||||
| 05 | Moulding fender rear right | 1 | 51131848308 | $48.36 | Shop at ECS Tuning | |||||
| 06 | Moulding fender rear left | 1 | 09/1982 | 51131848309 | $46.04 | Shop at ECS Tuning | ||||
| 06 | Moulding fender rear right | 1 | 09/1982 | 51131848310 | $48.17 | Shop at ECS Tuning | ||||
| 12 | Hex nut | M4-A2-70 | 4 | 07119922854 | Shop at ECS Tuning | |||||
| 13 | Washer | 4-200 HV-ZNS3 | 4 | 07119904207 | Shop at ECS Tuning | |||||
| 14 | Spring washer | B4 | 4 | 07119933034 | $0.11 | Shop at ECS Tuning | ||||
| 15 | Clamp | X | 51131848664 | $0.42 | Shop at ECS Tuning | |||||
| 16 | Cap nut | M4 | X | 41335480120 | $0.20 | Shop at ECS Tuning | ||||
| 17 | Grommet | D=6,8 | X | 51131916449 | $0.50 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
