Exterior trim / grill for BMW 3 Series E30 325i (1989)

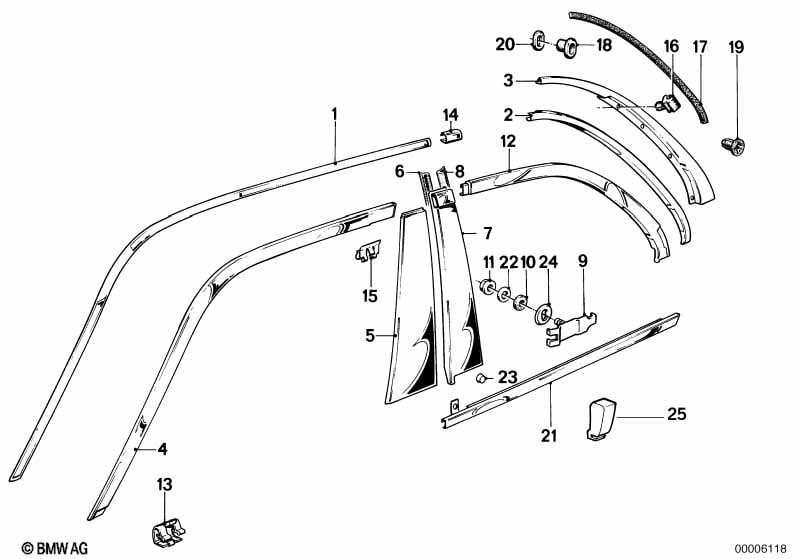

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulding roof left | 1 | 51131884451 | $90.10 | Shop at ECS Tuning | |||||
| 01 | Moulding roof right | 1 | 51131884452 | $90.10 | Shop at ECS Tuning | |||||
| 01 | Moulding roof left | SCHWARZ | 1 | 51131953065 | $169.03 | Shop at ECS Tuning | ||||
| 01 | Moulding roof right | SCHWARZ | 1 | 51131953066 | $173.10 | Shop at ECS Tuning | ||||
| 02 | Molding left | 1 | 51131884461 | $51.22 | ENDED | Shop at ECS Tuning | ||||
| 02 | Molding right | 1 | 51131884462 | $47.32 | Shop at ECS Tuning | |||||
| 02 | Molding left | SCHWARZ | 1 | 51131953063 | $57.52 | ENDED | Shop at ECS Tuning | |||
| 02 | Molding right | SCHWARZ | 1 | 51131953064 | $52.52 | Shop at ECS Tuning | ||||
| 03 | Moulding air outlet rear left | 1 | 51131922271 | $107.67 | ENDED | Shop at ECS Tuning | ||||
| 03 | Moulding air outlet rear right | 1 | 51131922272 | $107.67 | Shop at ECS Tuning | |||||
| 04 | Covering upper left | SCHWARZ | 1 | 09/1987 | 51321932381 | $31.95 | ENDED | Shop at ECS Tuning | ||
| 04 | Covering upper right | SCHWARZ | 1 | 09/1987 | 51321932382 | $37.94 | ENDED | Shop at ECS Tuning | ||
| 05 | Covering left | 1 | 51321888173 | $21.09 | Shop at ECS Tuning | |||||
| 05 | Covering right | 1 | 51321888174 | $21.09 | ENDED | Shop at ECS Tuning | ||||
| 06 | Gasket left | 1 | 09/1983 | 51721922471 | $2.79 | Shop at ECS Tuning | ||||
| 06 | Gasket right | 1 | 09/1983 | 51721922472 | $2.79 | Shop at ECS Tuning | ||||
| For vehicles with Vent window |
=Yes |
|||||||||
| 06 | Gasket left | 1 | 51721922471 | $2.79 | Shop at ECS Tuning | |||||
| 06 | Gasket right | 1 | 51721922472 | $2.79 | Shop at ECS Tuning | |||||
| 07 | Covering left | 1 | 09/1983 | 51131922743 | $77.82 | Shop at ECS Tuning | ||||
| 07 | Covering right | 1 | 09/1983 | 51131922744 | $77.82 | Shop at ECS Tuning | ||||
| For vehicles with Vent window |
=Yes |
|||||||||
| 07 | Covering left | 1 | 51361924987 | $38.71 | Shop at ECS Tuning | |||||
| 07 | Covering right | 1 | 51361924988 | $38.71 | Shop at ECS Tuning | |||||
| 08 | Rubber seal | 2 | 51131906568 | $3.48 | Shop at ECS Tuning | |||||
| 08 | Rubber seal | 2 | 51361911447 | $4.14 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bracket left | 1 | 09/1983 | 51131922747 | $16.99 | Shop at ECS Tuning | ||||
| 09 | Bracket right | 1 | 09/1983 | 51131922748 | $16.99 | Shop at ECS Tuning | ||||
| 10 | Gasket | 4 | 51131906872 | $0.17 | Shop at ECS Tuning | |||||
| 11 | Hex nut with plate | M5 | 4 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 12 | Moulding upper left | SCHWARZ | 1 | 09/1987 | 51361932383 | $53.01 | ENDED | Shop at ECS Tuning | ||
| 12 | Moulding upper right | SCHWARZ | 1 | 09/1987 | 51361932384 | $48.98 | ENDED | Shop at ECS Tuning | ||
| 13 | Clamp | 8 | 51131863499 | $0.23 | Shop at ECS Tuning | |||||
| 14 | Moulding joint left | 1 | 51131884465 | $4.60 | Shop at ECS Tuning | |||||
| 14 | Moulding joint right | 1 | 51131884466 | $4.60 | Shop at ECS Tuning | |||||
| 14 | Moulding joint left | SCHWARZ | 1 | 51131953067 | $14.71 | Shop at ECS Tuning | ||||
| 14 | Moulding joint right | SCHWARZ | 1 | 51131953068 | $14.71 | Shop at ECS Tuning | ||||

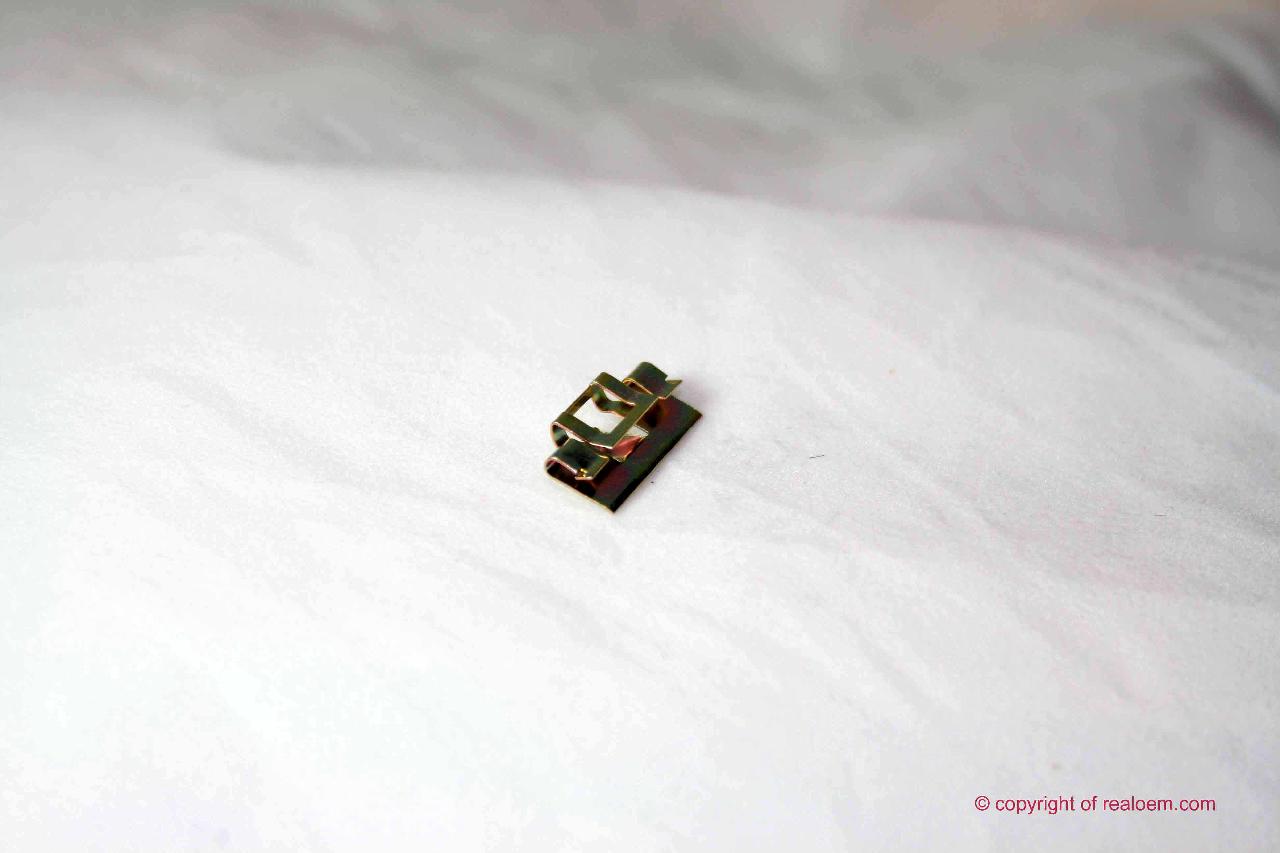

| 15 | Clamp | X | 51321874017 | $0.17 | Shop at ECS Tuning | |||||
| 16 | Clamp | 8 | 51131884467 | $0.48 | +core | Shop at ECS Tuning | ||||
| 17 | Filling rubber | 1000MM | 1 | 51131906969 | $5.52 | Shop at ECS Tuning | ||||

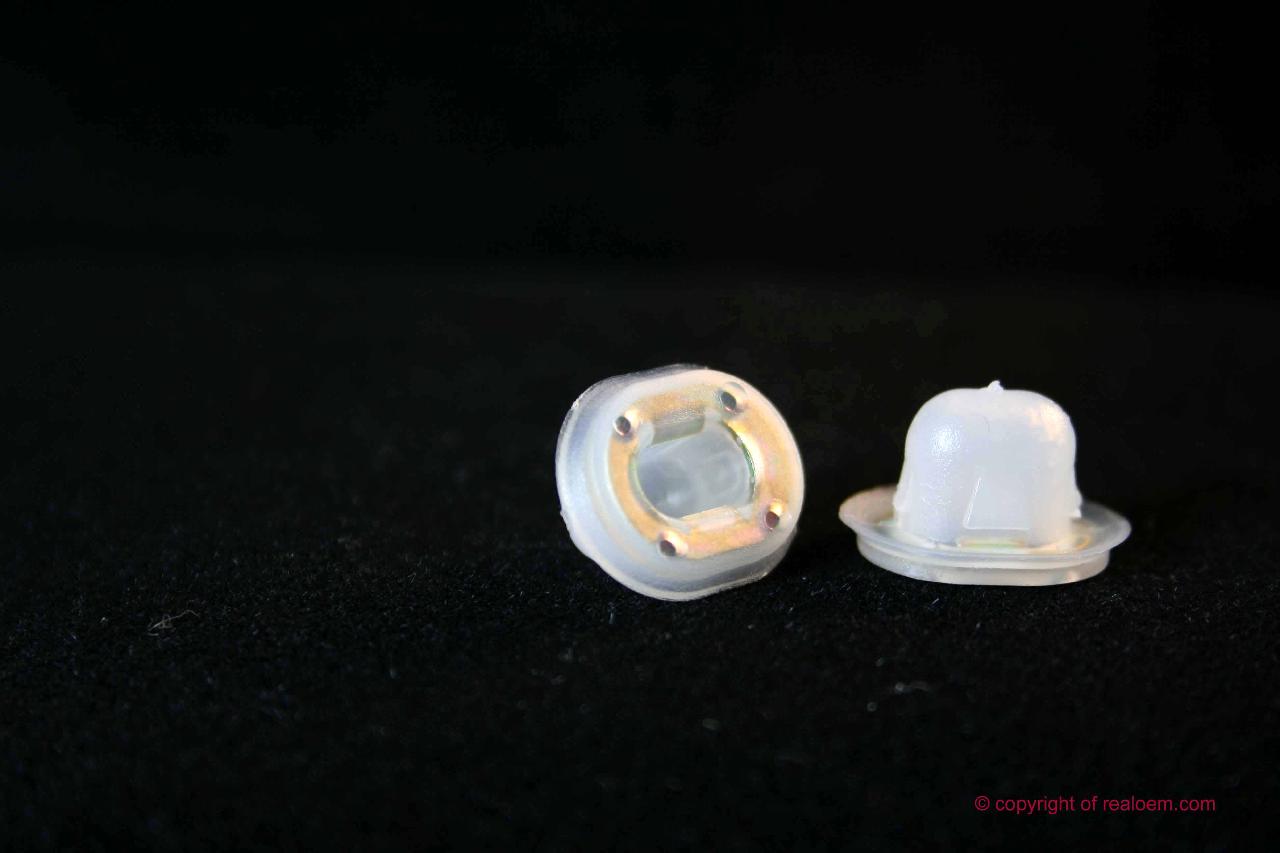

| 18 | Insert | 10X7 | 6 | 51131870459 | $0.38 | Shop at ECS Tuning | ||||

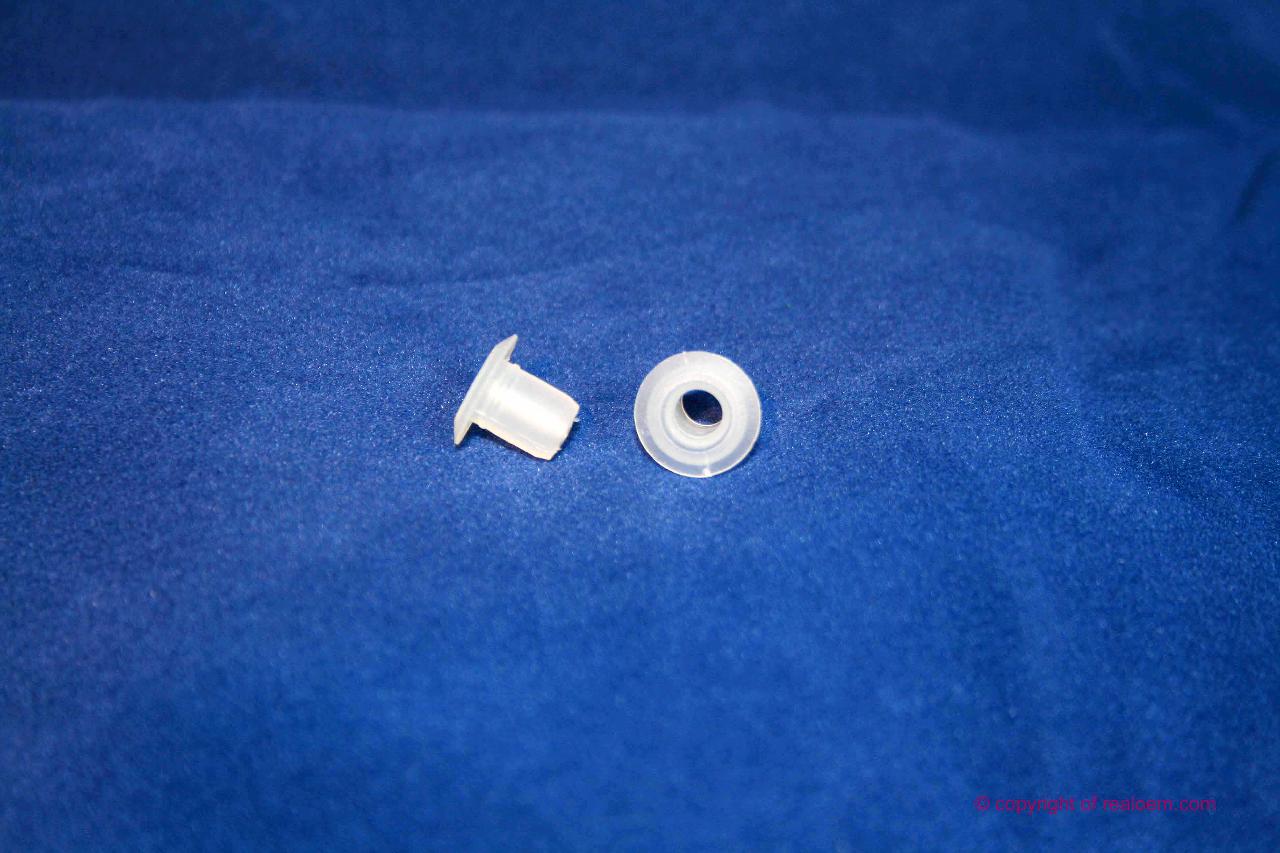

| 19 | Grommet | 2 | 51141902279 | $0.62 | Shop at ECS Tuning | |||||
| 20 | Gasket | 6 | 51131858962 | $0.13 | ENDED | Shop at ECS Tuning | ||||

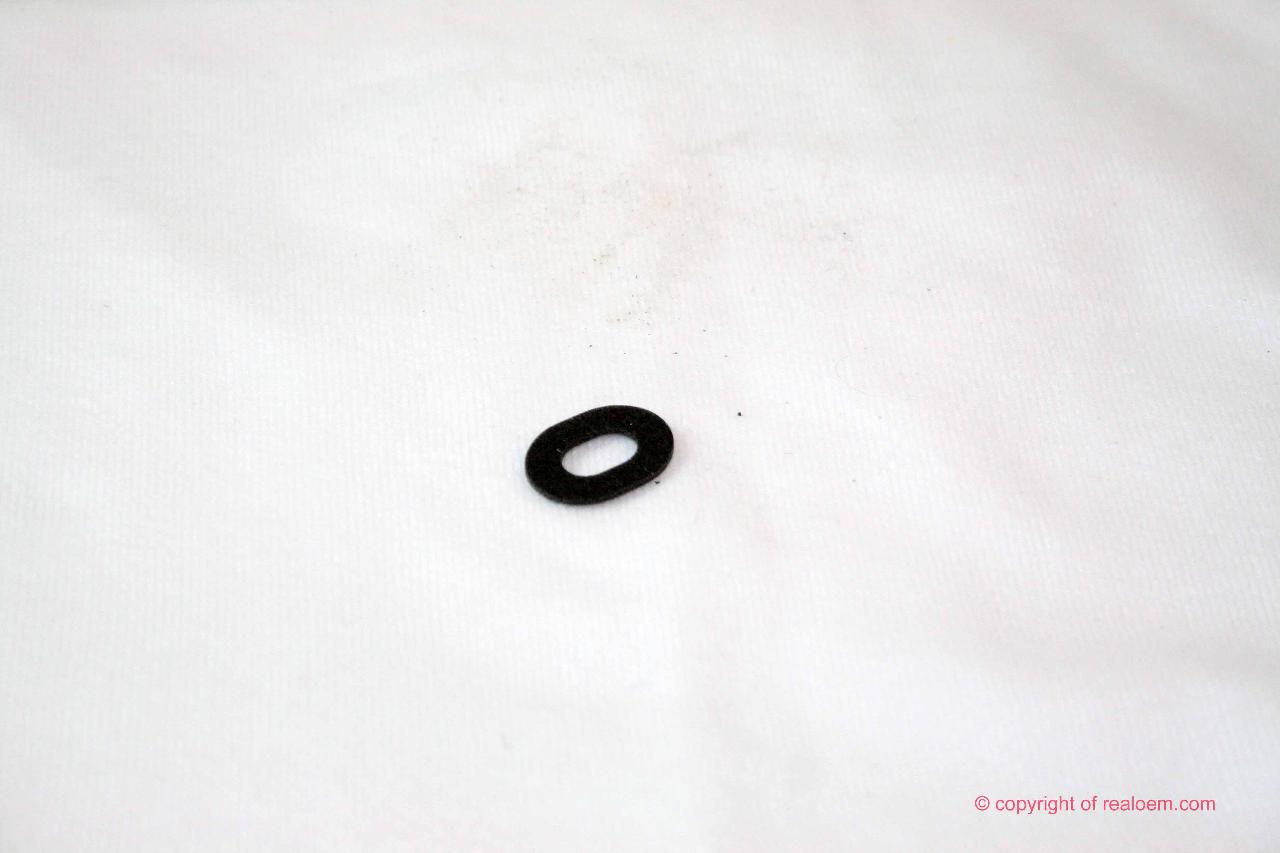

| 20 | Gasket | 6 | 51131904479 | $0.30 | Shop at ECS Tuning | |||||
| 21 | Moulding lower left | 1 | 51361884287 | $34.43 | ENDED | Shop at ECS Tuning | ||||
| 21 | Moulding lower right | 1 | 51361884288 | $56.64 | ENDED | Shop at ECS Tuning | ||||
| 21 | Moulding lower left | SCHWARZ | 1 | 51361932387 | $33.29 | ENDED | Shop at ECS Tuning | |||
| 21 | Moulding lower right | SCHWARZ | 1 | 51361932388 | $35.71 | ENDED | Shop at ECS Tuning | |||
| 22 | Washer | 2 | 17401354523 | $0.63 | Shop at ECS Tuning | |||||

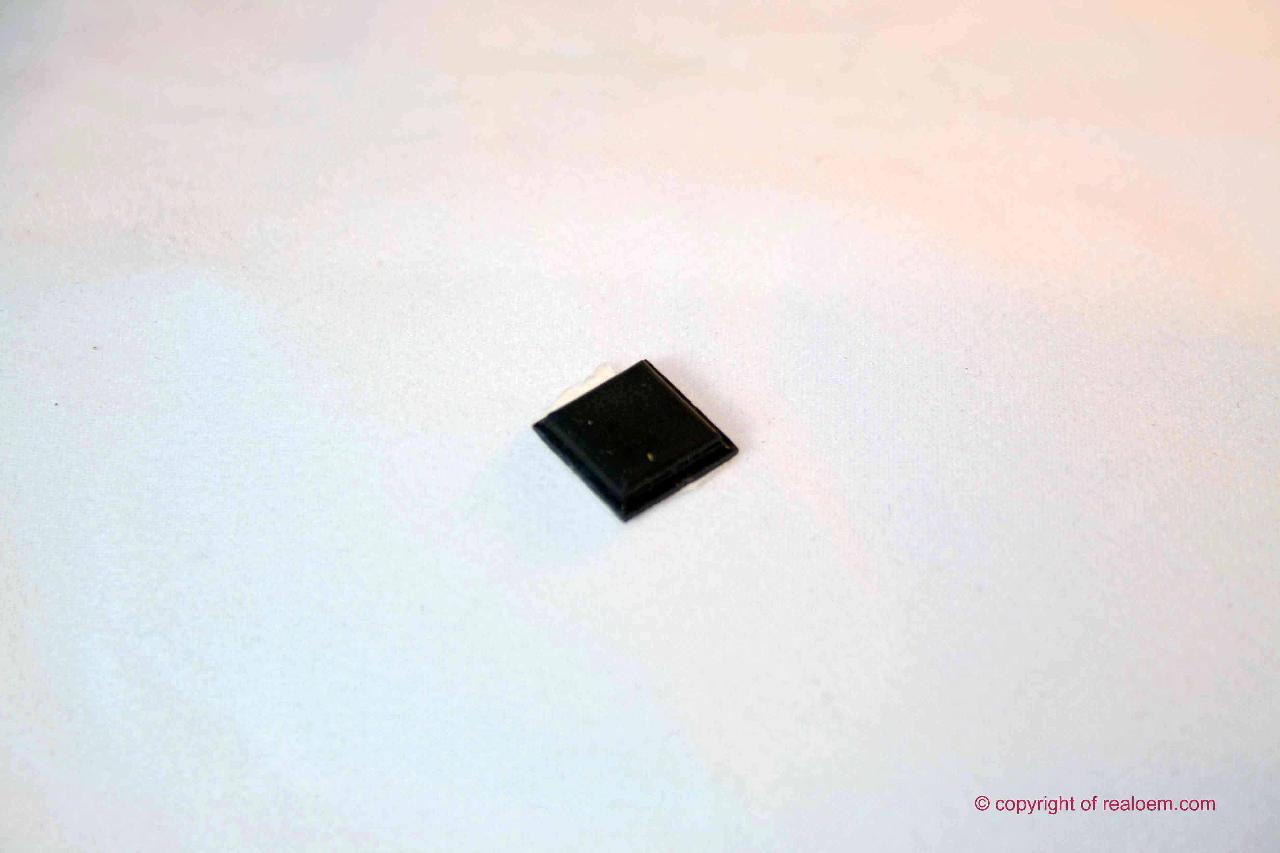

| 23 | Bump stop | 2 | 51318236877 | $0.58 | Shop at ECS Tuning | |||||
| 24 | Base | 4 | 51361922724 | $0.70 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
