Licence plate base for BMW 3 Series E30 325i (1989)

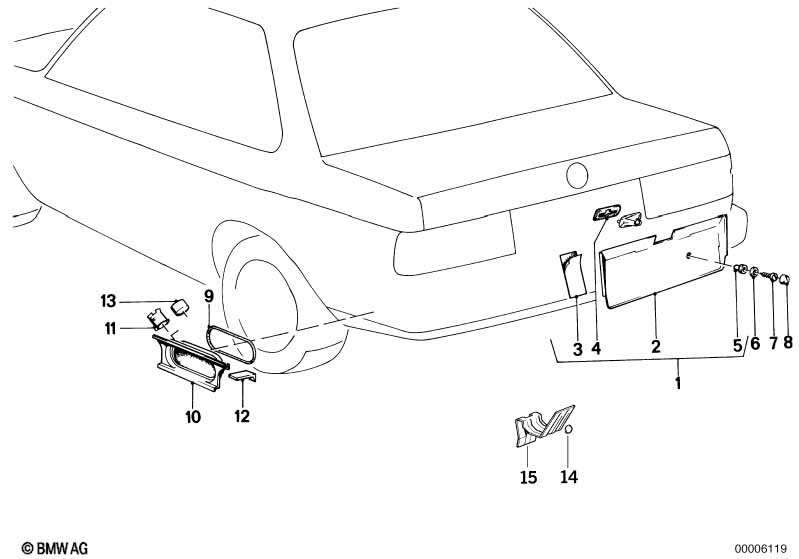

This Licence plate base technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Retrofit kit, rear covering | 1 | 51139058375 | ENDED | Shop at ECS Tuning | |||||
| 02 | Cover | 1 | 51131888463 | $48.98 | ENDED | Shop at ECS Tuning | ||||
| 03 | Adhesive tape | 2 | 51131920090 | $1.43 | Shop at ECS Tuning | |||||
| 04 | Gasket | 1 | 51241884152 | $3.54 | Shop at ECS Tuning | |||||
| 05 | Plug-in nut | 2 | 51181916071 | $1.26 | Shop at ECS Tuning | |||||
| 06 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 07 | Fillister head self-tapping screw | ST4,8X16MM | 2 | 07143448498 | $0.18 | Shop at ECS Tuning | ||||
| 08 | Covering cap | WEISS | 2 | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 08 | Covering cap | SCHWARZ | 2 | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 08 | Covering cap | DUNKELBLAU | 2 | 64111375497 | $0.20 | Shop at ECS Tuning | ||||
| 09 | Gasket ring | 2 | 64221922280 | $3.96 | Shop at ECS Tuning | |||||
| 10 | Breather covering rear | 2 | 09/1983 | 64221922739 | $23.08 | Shop at ECS Tuning | ||||
| 11 | Cable clamp | 2 | 09/1983 | 54121922721 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 13 | Cap | 2 | 64221922652 | $0.59 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
