Ornamental strips for BMW 5 Series E28 524td (1987)

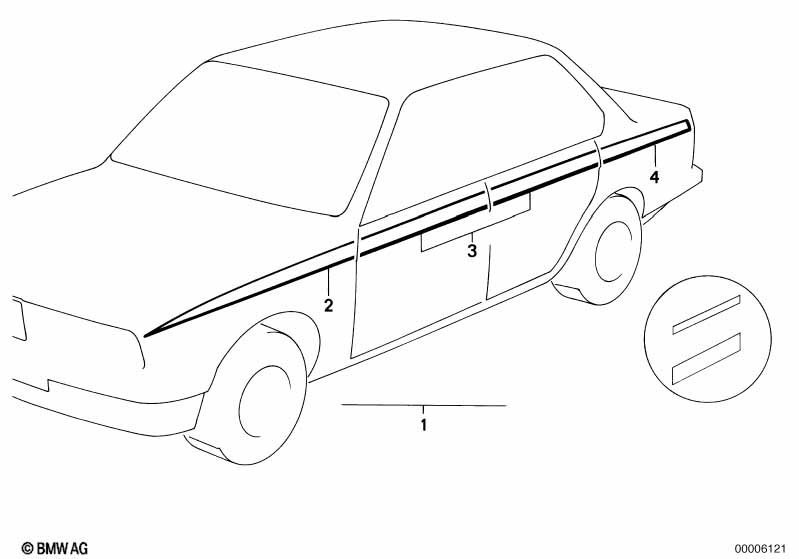

This Ornamental strips technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set decorating stripes | SCHWARZ | 1 | 51149056521 | ENDED | Shop at ECS Tuning | ||||
| 01 | Set decorating stripes | SILBER | 1 | 51149056522 | ENDED | Shop at ECS Tuning | ||||
| 02 | Ornamental strips, black front left | 1 | 51141866635 | $30.59 | Shop at ECS Tuning | |||||
| 02 | Ornamental strips, black front right | 1 | 51141866636 | $30.59 | Shop at ECS Tuning | |||||
| 02 | Decorative strip silver front left | 1 | 51141866637 | $30.59 | Shop at ECS Tuning | |||||
| 02 | Decorative strip silver front right | 1 | 51141866638 | $30.59 | Shop at ECS Tuning | |||||
| 03 | Ornamental strips, black | 2 | 51149057104 | $32.24 | ENDED | Shop at ECS Tuning | ||||
| 03 | Decorative strip silber | 2 | 51149057106 | $39.80 | ENDED | Shop at ECS Tuning | ||||
| 04 | Ornamental strips, black left | 1 | 51141866643 | $46.00 | ENDED | Shop at ECS Tuning | ||||
| 04 | Ornamental strips, black right | 1 | 51141866644 | $46.00 | ENDED | Shop at ECS Tuning | ||||
| 04 | Decorative strip silver left | 1 | 51141866645 | $74.33 | Shop at ECS Tuning | |||||
| 04 | Decorative strip silver right | 1 | 51141866646 | $74.33 | Shop at ECS Tuning |
