Wheel opening cover M technic for BMW 5 Series E28 M535i (1987)

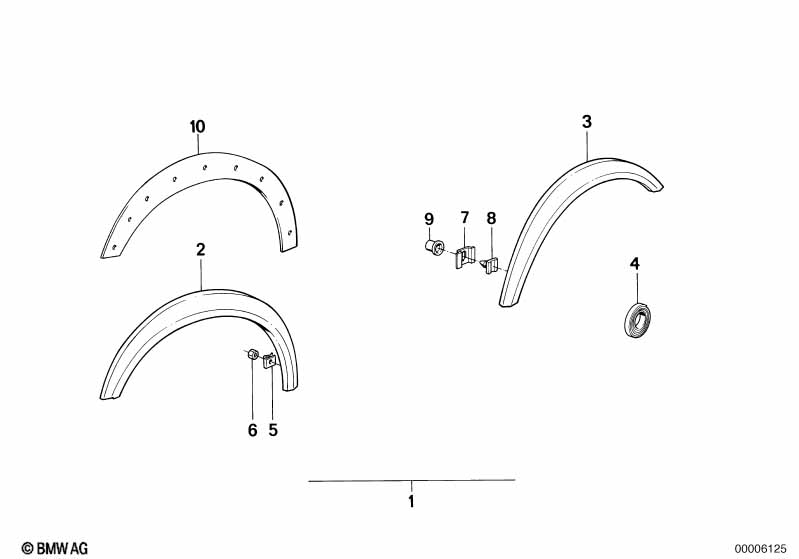

This Wheel opening cover M technic technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wheel opening panel | M TECHNIC | 1 | 51711932954 | $908.59 | ENDED | Shop at ECS Tuning | |||
| 02 | Covering front left | M TECHNIC | 1 | 51711929327 | $215.17 | ENDED | Shop at ECS Tuning | |||
| 02 | Covering front right | M TECHNIC | 1 | 51711929328 | $215.17 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering rear left | M TECHNIC | 1 | 51711933175 | $240.44 | Shop at ECS Tuning | ||||
| 03 | Covering rear right | M TECHNIC | 1 | 51711933176 | $240.44 | Shop at ECS Tuning | ||||
| 04 | Adhesive tape | 3000MM | 2 | 51711976999 | $28.02 | Shop at ECS Tuning | ||||
| 05 | Clamp | 8 | 51711922599 | $0.42 | Shop at ECS Tuning | |||||
| 06 | Nut | 8 | 51135770165 | $1.97 | ENDED | Shop at ECS Tuning | ||||
| 07 | Base | 8 | 51711932020 | $1.14 | Shop at ECS Tuning | |||||
| 08 | Plug | WEISS | 8 | 51711929320 | $1.27 | Shop at ECS Tuning | ||||
| 09 | Grommet, green | D=9,1MM | 8 | 51711932996 | $0.23 | Shop at ECS Tuning | ||||
| 10 | Template front left | M TECHNIC | 1 | 51711941265 | $7.13 | ENDED | Shop at ECS Tuning | |||
| 10 | Template front right | M TECHNIC | 1 | 51711941266 | $7.13 | ENDED | Shop at ECS Tuning | |||
| 10 | Template rear left | M TECHNIC | 1 | 51711941267 | $7.32 | Shop at ECS Tuning | ||||
| 10 | Template rear right | M TECHNIC | 1 | 51711941268 | $7.32 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 M535i Wheel opening cover M technic?
- This technical diagram illustrates the Wheel opening cover M technic within the Vehicle trim group for the 5 Series E28 M535i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Wheel opening panel (Part #51711932954).
- Which models use the hardware listed in this Wheel opening cover M technic?
- The hardware and components featured in the Wheel opening cover M technic are specific to the 5 Series E28 M535i produced during 1987. These technical specifications ensure that parts like the Wheel opening panel (51711932954) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wheel opening cover M technic assembly?
- Each item in the Wheel opening cover M technic corresponds to the numbered list below the illustration. For the 5 Series E28 M535i, you can identify the Wheel opening panel by locating its position on the schematic, which then links to the official BMW part number 51711932954 for the Vehicle trim section.
