Decorating stripes M technik for BMW 3 Series E30 325i (1989)

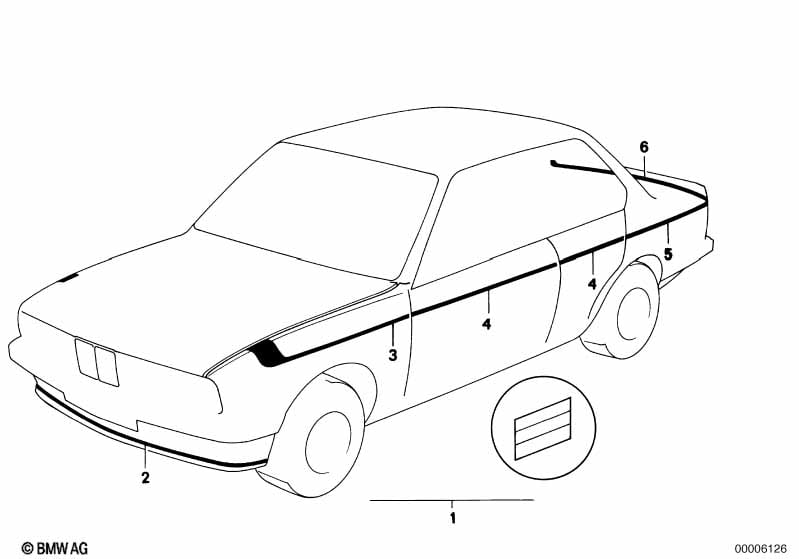

This Decorating stripes M technik technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set decorating stripes | M TECHNIC | 1 | 51141932212 | $130.57 | ENDED | Shop at ECS Tuning | |||
| 03 | Decorating stripes fender front left | M TECHNIC | 1 | 51141932213 | $144.18 | Shop at ECS Tuning | ||||
| 03 | Decorating stripes fender front right | M TECHNIC | 1 | 51141932214 | $135.46 | Shop at ECS Tuning | ||||
| 04 | Decorating stripes door left | M TECHNIC | 1 | 51141932215 | $60.92 | Shop at ECS Tuning | ||||
| 04 | Decorating stripes door right | M TECHNIC | 1 | 51141932216 | $60.92 | Shop at ECS Tuning | ||||
| 05 | Decorating stripes fender rear left | M TECHNIC | 1 | 51141932217 | $73.31 | Shop at ECS Tuning | ||||
| 05 | Decorating stripes fender rear right | M TECHNIC | 1 | 51141932218 | $73.31 | ENDED | Shop at ECS Tuning | |||
| 06 | Decorating stripes trunk lid | M TECHNIC | 1 | 51141932219 | $96.95 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325i Decorating stripes M technik?
- This technical diagram illustrates the Decorating stripes M technik within the Vehicle trim group for the 3 Series E30 325i produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Set decorating stripes (Part #51141932212).
- Which models use the hardware listed in this Decorating stripes M technik?
- The hardware and components featured in the Decorating stripes M technik are specific to the 3 Series E30 325i produced during 1989. These technical specifications ensure that parts like the Set decorating stripes (51141932212) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Decorating stripes M technik assembly?
- Each item in the Decorating stripes M technik corresponds to the numbered list below the illustration. For the 3 Series E30 325i, you can identify the Set decorating stripes by locating its position on the schematic, which then links to the official BMW part number 51141932212 for the Vehicle trim section.
