Exterior trim / grill for BMW 3 Series E30 325i (1988)

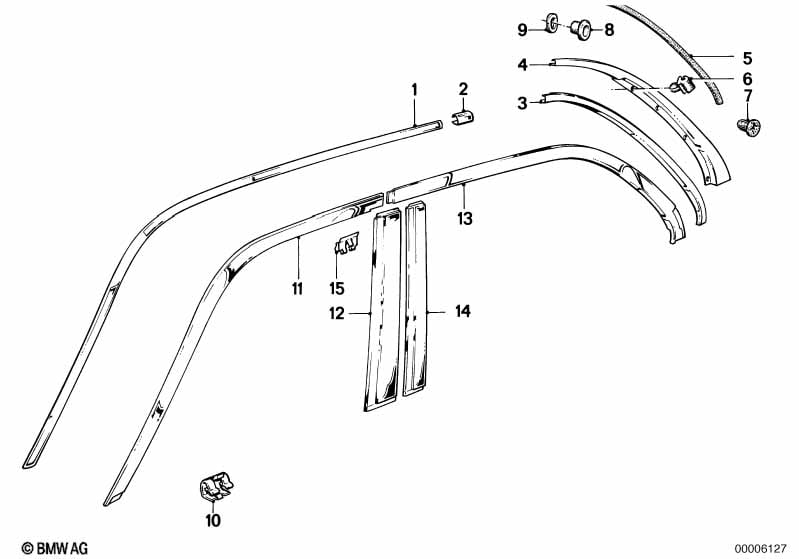

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulding roof left | 1 | 51131884451 | $90.10 | Shop at ECS Tuning | |||||
| 01 | Moulding roof right | 1 | 51131884452 | $90.10 | Shop at ECS Tuning | |||||
| 02 | Moulding joint left | 1 | 51131884465 | $4.60 | Shop at ECS Tuning | |||||
| 02 | Moulding joint right | 1 | 51131884466 | $4.60 | Shop at ECS Tuning | |||||
| 03 | Molding left | 1 | 51131906833 | $49.17 | ENDED | Shop at ECS Tuning | ||||
| 03 | Molding right | 1 | 51131906834 | $49.17 | Shop at ECS Tuning | |||||
| 04 | Moulding air outlet rear left | 1 | 51131922331 | $92.47 | Shop at ECS Tuning | |||||
| 04 | Moulding air outlet rear right | 1 | 51131922332 | $92.47 | Shop at ECS Tuning | |||||
| 05 | Filling rubber | 1000MM | X | 51131906969 | $5.52 | Shop at ECS Tuning | ||||
| 06 | Clamp | 8 | 51131884467 | $0.48 | +core | Shop at ECS Tuning | ||||
| 07 | Grommet | 2 | 51141902279 | $0.62 | Shop at ECS Tuning | |||||
| 08 | Insert | 10X7 | 6 | 51131870459 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Gasket | 6 | 51131858962 | $0.13 | ENDED | Shop at ECS Tuning | ||||
| 09 | Gasket | 6 | 51131904479 | $0.30 | Shop at ECS Tuning | |||||
| 10 | Clamp | 8 | 51131863499 | $0.23 | Shop at ECS Tuning | |||||
| 11 | Covering left | SCHWARZ | 1 | 09/1987 | 51321961247 | $35.21 | Shop at ECS Tuning | |||
| 11 | Covering right | SCHWARZ | 1 | 09/1987 | 51321961248 | $35.21 | Shop at ECS Tuning | |||
| 12 | Covering left | 1 | 51321876143 | $20.36 | Shop at ECS Tuning | |||||
| 12 | Covering right | 1 | 51321876144 | $20.36 | Shop at ECS Tuning | |||||
| 13 | Covering left | SCHWARZ | 1 | 09/1987 | 51341961273 | $51.84 | ENDED | Shop at ECS Tuning | ||
| 13 | Covering right | SCHWARZ | 1 | 09/1987 | 51341961274 | $51.84 | ENDED | Shop at ECS Tuning | ||
| 14 | Covering left | 1 | 51341888219 | $24.95 | ENDED | Shop at ECS Tuning | ||||
| 14 | Covering right | 1 | 51341888220 | $24.95 | Shop at ECS Tuning | |||||
| 15 | Clamp | X | 51321874017 | $0.17 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
