Exterior trim / grill for BMW 7 Series E32 740i (1994)

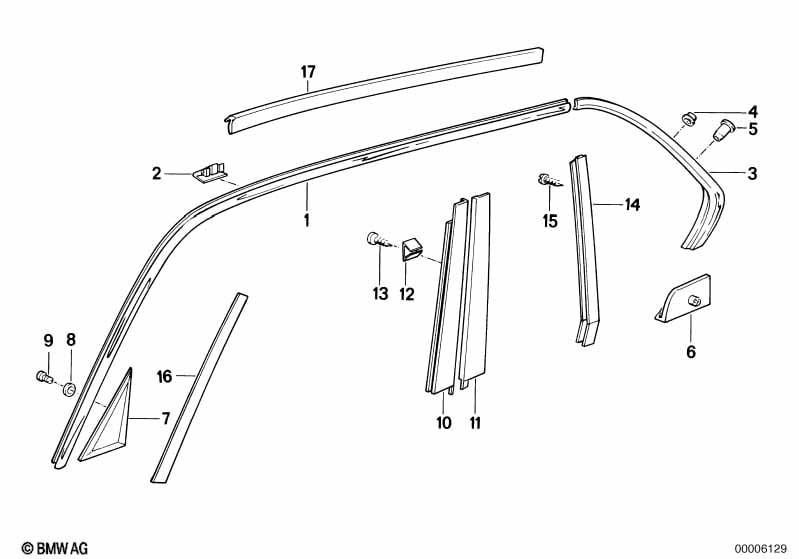

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Moulding left | 1 | 01/1989 | 51138111677 | $104.20 | Shop at ECS Tuning | ||||
| 01 | Moulding right | 1 | 01/1989 | 51138111678 | $104.20 | Shop at ECS Tuning | ||||
| 01 | Moulding left | SCHWARZ | 1 | 01/1989 | 51138114333 | $112.81 | Shop at ECS Tuning | |||
| 01 | Moulding right | SCHWARZ | 1 | 01/1989 | 51138114334 | $112.81 | ENDED | Shop at ECS Tuning | ||
| 02 | Clamp | X | 51131924953 | $0.42 | Shop at ECS Tuning | |||||
| 03 | Moulding left | SCHWARZ | 1 | 01/1989 | 51138111367 | $116.88 | Shop at ECS Tuning | |||
| 03 | Moulding right | SCHWARZ | 1 | 01/1989 | 51138111368 | $116.88 | Shop at ECS Tuning | |||
| 03 | Moulding left | 1 | 01/1989 | 51138111679 | $114.67 | Shop at ECS Tuning | ||||
| 03 | Moulding right | 1 | 01/1989 | 51138111680 | $114.67 | ENDED | Shop at ECS Tuning | |||
| 04 | Insert | 10X7 | 1 | 51131870459 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Grommet | D=4,8 | 2 | 51131928778 | $0.65 | Shop at ECS Tuning | ||||
| 06 | Bracket left | 1 | 51131949741 | $0.48 | Shop at ECS Tuning | |||||
| 06 | Bracket right | 1 | 51131949742 | $0.48 | Shop at ECS Tuning | |||||
| 07 | Covering outer right | 1 | 51321938068 | $27.62 | ENDED | Shop at ECS Tuning | ||||
| 08 | Washer | 1 | 51161938070 | $1.58 | Shop at ECS Tuning | |||||
| 09 | Fillister-head screw | M8X20 | 1 | 07119919759 | $0.47 | Shop at ECS Tuning | ||||
| 10 | Moulding window frame left | 1 | 51321928855 | $40.35 | Shop at ECS Tuning | |||||
| 10 | Moulding window frame right | 1 | 51321928856 | $40.35 | Shop at ECS Tuning | |||||
| 11 | Moulding window frame left | 1 | 51341928857 | $39.98 | Shop at ECS Tuning | |||||
| 11 | Moulding window frame right | 1 | 51341928858 | $39.98 | Shop at ECS Tuning | |||||
| 12 | Prestol-cage | ST4,2 | 4 | 07129925754 | $0.19 | Shop at ECS Tuning | ||||
| 13 | Sheet-metal screw, black | ST4,2X13 | 4 | 07119901268 | $0.44 | Shop at ECS Tuning | ||||
| 14 | Covering outer left | 1 | 51341928853 | $30.28 | ENDED | Shop at ECS Tuning | ||||
| 14 | Covering outer right | 1 | 51341928854 | $30.28 | Shop at ECS Tuning | |||||
| 15 | Fillister head self-tapping screw | ST3,5X9,5 | 3 | 04/1994 | 07119906717 | $0.25 | ENDED | Shop at ECS Tuning | ||
| 16 | Covering left | 2 | 51134186392 | $9.13 | Shop at ECS Tuning | |||||
| 16 | Covering right | 2 | 51139059256 | ENDED | Shop at ECS Tuning | |||||
