Emblems / letterings for BMW 3 Series E21 320 (1977)

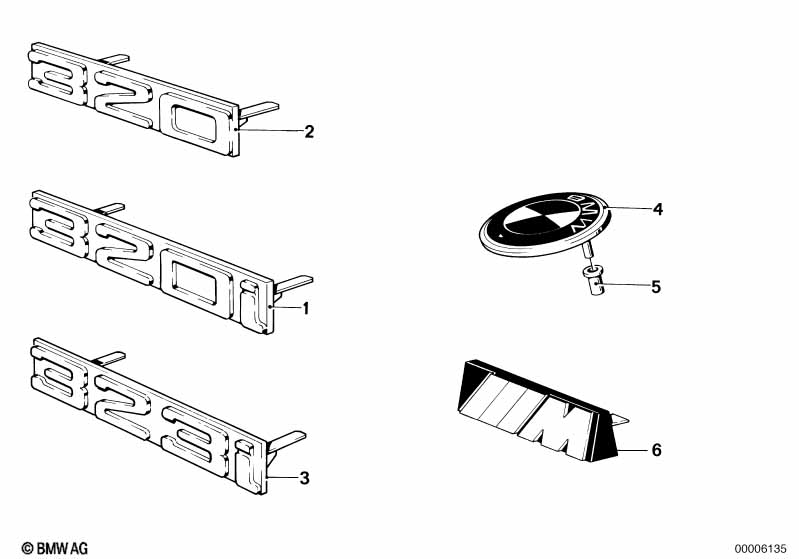

This Emblems / letterings technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | BMW emblem | D=82MM | 1 | 51145480181 | $41.58 | Shop at ECS Tuning | ||||
| 04 | Badge | Ø 82MM | 1 | 51148132375 | $32.02 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Grommet | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| 05 | Grommet | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| 05 | Grommet | 2 | 51141852899 | $1.84 | Shop at ECS Tuning | |||||
| 05 | Grommet | 2 | 51141889489 | $1.38 | Shop at ECS Tuning | |||||
| 06 | Letter "M" front | 1 | 51141884015 | $37.00 | Shop at ECS Tuning | |||||
