Emblems / letterings for BMW 5 Series E12 530i (1978)

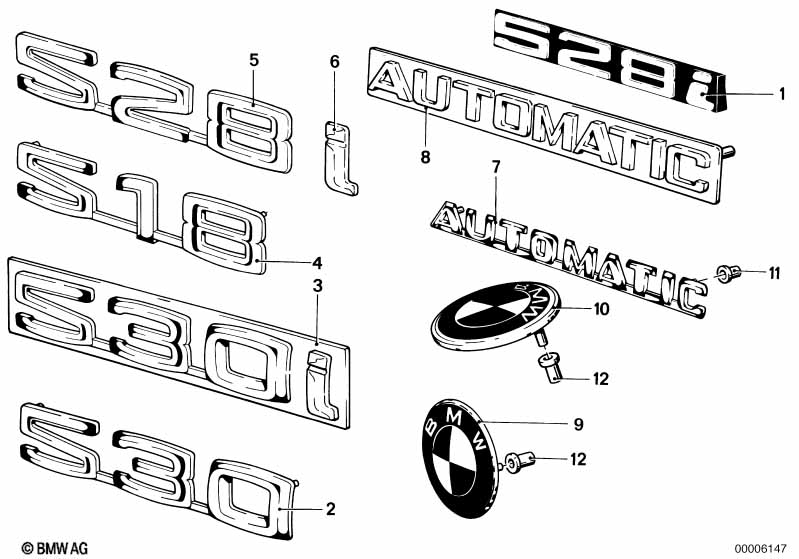

This Emblems / letterings technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Emblem rear | "530" | 1 | 09/1976 | 09/1978 | 51141849920 | $35.43 | ENDED | Shop at ECS Tuning | |
| 08 | Sign plate "automatic" | 1 | 09/1976 | 09/1978 | 51141848265 | $33.29 | ENDED | Shop at ECS Tuning | ||
| 09 | Trunk lid badge | 1 | 51141872327 | $35.63 | Shop at ECS Tuning | |||||
| 10 | BMW emblem | D=82MM | 1 | 51145480181 | $41.58 | Shop at ECS Tuning | ||||
| 11 | Grommet | 4 | 51141849885 | $1.38 | ENDED | Shop at ECS Tuning | ||||
| 12 | Grommet | 4 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| 12 | Grommet | 4 | 51141852899 | $1.84 | Shop at ECS Tuning | |||||
| 12 | Grommet | 4 | 51141889489 | $1.38 | Shop at ECS Tuning |
