Emblems / letterings for BMW 5 Series E28 520i (1988)

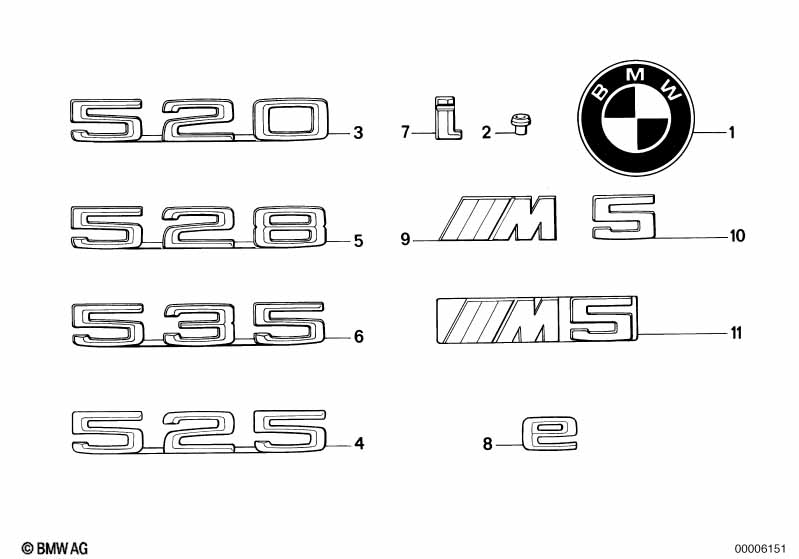

This Emblems / letterings technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid badge | 1 | 51141872969 | $30.43 | Shop at ECS Tuning | |||||
| 01 | Badge | Ø 82MM | 1 | 51148132375 | $32.02 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Grommet | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| 02 | Grommet | X | 51141902279 | $0.62 | Shop at ECS Tuning | |||||
| 03 | Emblem adhered | "520" | 1 | 51141946161 | $22.33 | Shop at ECS Tuning | ||||
| 07 | Emblem adhered rear | "I" | 1 | 51141916137 | $12.63 | Shop at ECS Tuning | ||||
