Emblems / letterings for BMW 3 Series E30 323i (1986)

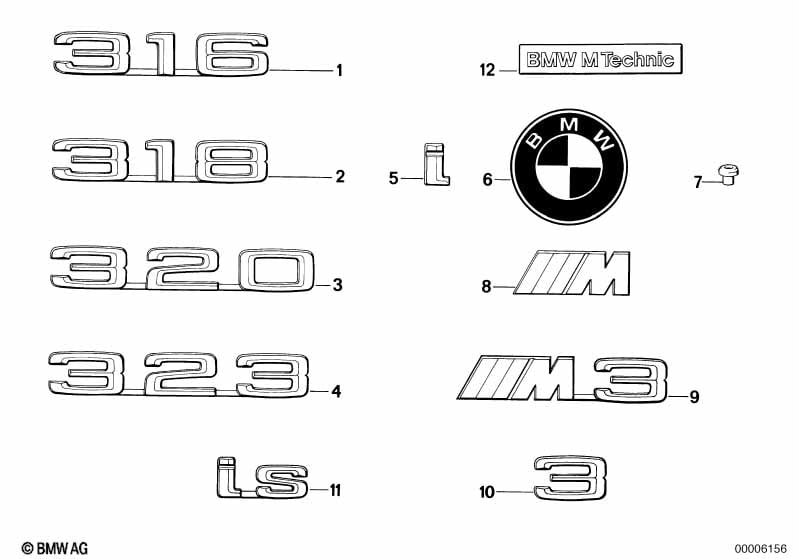

This Emblems / letterings technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Emblem adhered | "323" | 1 | 51141916135 | $32.20 | ENDED | Shop at ECS Tuning | |||
| 05 | Emblem adhered rear | "I" | 1 | 51141916137 | $12.63 | Shop at ECS Tuning | ||||
| 06 | Trunk lid badge | 1 | 51141872969 | $30.43 | Shop at ECS Tuning | |||||
| 06 | Badge | Ø 82MM | 1 | 51148132375 | $32.02 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Grommet | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| 07 | Grommet | 4 | 51141902279 | $0.62 | Shop at ECS Tuning | |||||
| 08 | Letter "M" rear | 1 | 51141917739 | $37.00 | Shop at ECS Tuning | |||||
| 08 | Letter "M" front | 1 | 72601933569 | $35.32 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 323i Emblems / letterings?
- This technical diagram illustrates the Emblems / letterings within the Vehicle trim group for the 3 Series E30 323i produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Emblem adhered (Part #51141916135).
- Which models use the hardware listed in this Emblems / letterings?
- The hardware and components featured in the Emblems / letterings are specific to the 3 Series E30 323i produced during 1986. These technical specifications ensure that parts like the Emblem adhered (51141916135) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Emblems / letterings assembly?
- Each item in the Emblems / letterings corresponds to the numbered list below the illustration. For the 3 Series E30 323i, you can identify the Emblem adhered by locating its position on the schematic, which then links to the official BMW part number 51141916135 for the Vehicle trim section.
