Trim cover, front for BMW 2 Series F45 Active Tourer 225i (2016)

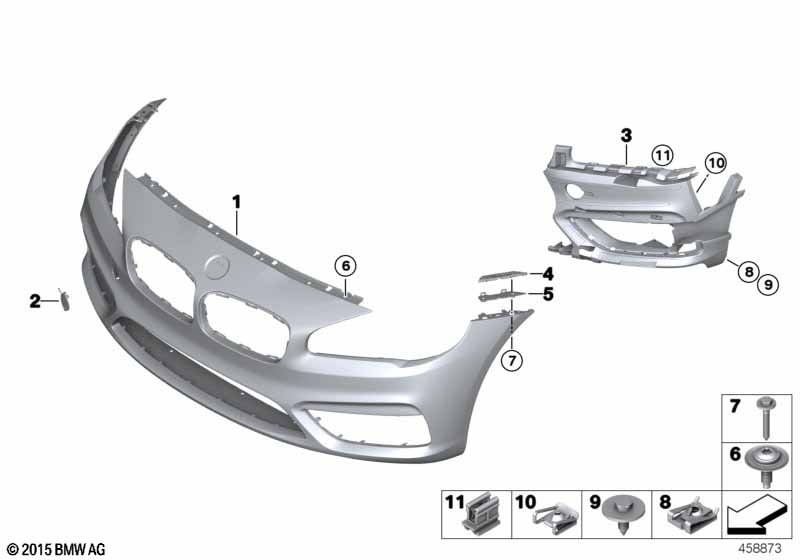

This Trim cover, front technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 225i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=No |
||||||||
| For vehicles with National version China and Park Assistent and Skid plate national versions |
L8AAA=No S5DPA=Yes S8SDA=No |
|||||||||
| 01 | Trim cover, bumper, primed, front | PMA | 1 | 51117407680 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Kit add-ons bumper front | VALUE PARTS | 1 | 51115B30CD1 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Park Assistent and Skid plate national versions |
L8AAA=Yes S5DPA=Yes S8SDA=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | PMA | 1 | 51117407684 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Kit add-ons bumper front | VALUE PARTS | 1 | 51115B30CD1 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Park Assistent and Skid plate national versions |
L8AAA=No S5DPA=Yes S8SDA=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | PMA | 1 | 51117407684 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Kit add-ons bumper front | VALUE PARTS | 1 | 51115B30CD1 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Park Assistent and Skid plate national versions Important notice! Observe product information. Use "Only in conjunction with" parts. |
L8AAA=No S5DPA=No S8SDA=No |
|||||||||
| 01 | Trim cover, bumper, primed, front | PMA | 1 | 51117407680 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Decoupling ring PDC torque converter | 6 | 66209283203 | Shop at ECS Tuning | ||||||
| -- | Kit dummy trim | GEN 5.7.X | 1 | 51125A3F538 | Shop at ECS Tuning | |||||
| -- | Kit add-ons bumper front | VALUE PARTS | 1 | 51115B30CD1 | Shop at ECS Tuning | |||||
| -- | Stick-on label | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Park Assistent and Skid plate national versions |
L8AAA=No S5DPA=No S8SDA=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | BASIS | 1 | 51117407683 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Kit add-ons bumper front | VALUE PARTS | 1 | 51115B30CD1 | Shop at ECS Tuning | |||||
| 02 | Flap, towing eye, primed | 1 | 51117347039 | Shop at ECS Tuning | ||||||
| 03 | Support, fog lamp left | GESCHLOSSEN | 1 | 51117376981 | Shop at ECS Tuning | |||||
| 03 | Support, fog lamp right | GESCHLOSSEN | 1 | 51117376982 | Shop at ECS Tuning | |||||
| For vehicles with Towing hitch, detachable and M Aerodynamics package and Hot-climate version suitable for outside radiators |
S235A=Yes S715A=No S823A=Yes |
|||||||||
| 03 | Support, fog lamp left | OFFEN | 1 | 51117301547 | Shop at ECS Tuning | |||||
| For vehicles with Towing hitch, detachable and M Aerodynamics package and Hot-climate version suitable for outside radiators |
S235A=Yes S715A=No S823A=No |
|||||||||
| 03 | Support, fog lamp left | OFFEN | 1 | 51117301547 | Shop at ECS Tuning | |||||
| For vehicles with Towing hitch, detachable and M Aerodynamics package and Hot-climate version suitable for outside radiators |
S235A=No S715A=No S823A=Yes |
|||||||||
| 03 | Support, fog lamp left | OFFEN | 1 | 51117301547 | Shop at ECS Tuning | |||||
| 04 | Mount, side wall front, upper left | 1 | 51117328679 | Shop at ECS Tuning | ||||||
| 04 | Mount, side wall front, upper right | 1 | 51117328680 | Shop at ECS Tuning | ||||||
| 05 | Insert, bumper front left | 1 | 51117301575 | Shop at ECS Tuning | ||||||
| 05 | Insert, bumper front right | 1 | 51117301576 | Shop at ECS Tuning | ||||||
| 06 | Oval-head screw with washer | M6X20 | 6 | 04/2018 | 07147406384 | ENDED | Shop at ECS Tuning | |||
| 06 | Oval-head screw with spring washer | M6X20 | 6 | 07145A48F73 | Shop at ECS Tuning | |||||
| 07 | Screw | TS5X35 SW8 D=15 | 4 | 07129907535 | Shop at ECS Tuning | |||||
| 08 | C-clip nut | 12 | 51717065773 | Shop at ECS Tuning | ||||||
| 09 | Hex bolt | TS5X17 SW8 D=22 | 12 | 07149126886 | Shop at ECS Tuning | |||||
| 10 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 2 | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
| 11 | Clip retainer | 4 | 61137856714 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
