Trim panel dashboard for BMW 6 Series E24 633CSi (1979)

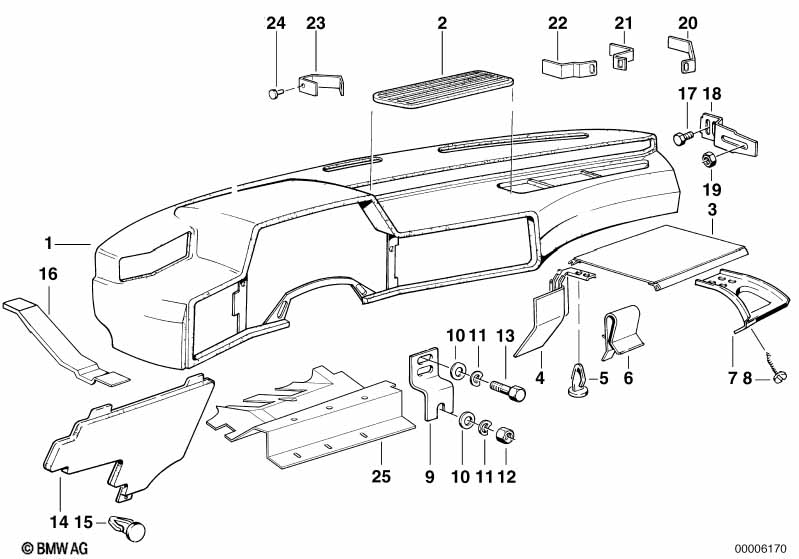

This Trim panel dashboard technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel dashboard | ANTHRAZIT | 1 | 09/1982 | 51451839182 | $1300.14 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Bracket lower | 1 | 09/1982 | 51451885835 | $2.75 | ENDED | Shop at ECS Tuning | |||
| -- | Bracket upper | 1 | 09/1982 | 51451885839 | $2.75 | ENDED | Shop at ECS Tuning | |||
| -- | Support shackle | 1 | 09/1982 | 51451901520 | $3.03 | Shop at ECS Tuning | ||||
| 03 | Covering glove box | 1 | 09/1981 | 51161839863 | $39.34 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering glove box | 1 | 06/1987 | 51451929349 | $77.71 | ENDED | Shop at ECS Tuning | |||
| 04 | Cover | 1 | 51451869681 | $17.14 | Shop at ECS Tuning | |||||
| 05 | Clamp | 1 | 09/1982 | 51451859442 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Clamp | 4 | 51211803685 | $1.93 | Shop at ECS Tuning | |||||
| 07 | Support | 1 | 51451859657 | $21.65 | ENDED | Shop at ECS Tuning | ||||
| 08 | Fillister head self-tapping screw | ST4,8X13 | 2 | 07119907786 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Holder | 2 | 51451839259 | $11.65 | ENDED | Shop at ECS Tuning | ||||
| 10 | Washer | A6,4-ZNNIV SI | 6 | 07119904202 | Shop at ECS Tuning | |||||
| 11 | Wave washer | B6 | 6 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 11 | Spring washer Black | B6-ZN | 6 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Washer | 5.3-140 HV-ZNS | 6 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 11 | Wave washer | B6-ZNS3 | 6 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex nut | M6-8-ZNNIV SI | 6 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 14 | Dash board covering | 1 | 51451859281 | $36.33 | ENDED | Shop at ECS Tuning | ||||
| 15 | Clamp | 2 | 51451859442 | $0.38 | Shop at ECS Tuning | |||||
| 16 | Support | 1 | 51451859907 | ENDED | Shop at ECS Tuning | |||||
| 17 | Hex bolt with washer | M6X12-Z3-1 | 4 | 09/1982 | 07119915033 | $1.07 | Shop at ECS Tuning | |||
| 18 | Support shackle | 2 | 09/1982 | 51451901520 | $3.03 | Shop at ECS Tuning | ||||
| 19 | Hex nut with plate | M6 | 4 | 09/1982 | 07147134319 | $1.05 | Shop at ECS Tuning | |||
| 20 | Bracket upper | 1 | 09/1982 | 51451885839 | $2.75 | ENDED | Shop at ECS Tuning | |||
| 22 | Bracket lower | 1 | 09/1982 | 51451885835 | $2.75 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
