Trim panel dashboard LOWER for BMW 6 Series E24 635CSi (1989)

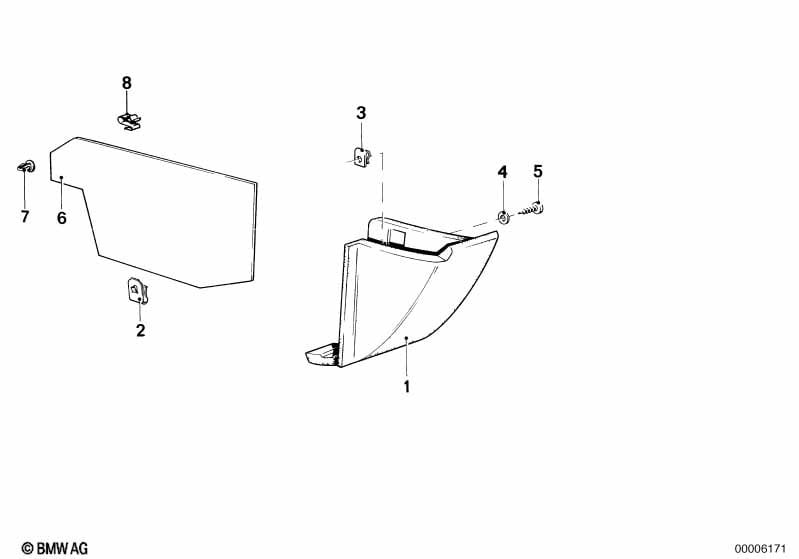

This Trim panel dashboard LOWER technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Clamp | 1 | 51451869283 | ENDED | Shop at ECS Tuning | |||||
| 03 | Body nut | ST3,5-1-ZNS | 3 | 07129901634 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Washer | 4-200 HV-ZNS3 | 3 | 07119904207 | Shop at ECS Tuning | |||||
| 05 | Fillister head self-tapping screw | ST3,5X19 | 3 | 07119907905 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Extension | 1 | 51451861414 | ENDED | Shop at ECS Tuning | |||||
| 08 | Cable clamp | D=5MM | 1 | 05/1982 | 61131353126 | $0.42 | Shop at ECS Tuning | |||
| 08 | Cable clamp | D=5MM | 1 | 05/1982 | 61131353126 | $0.42 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
