Trim panel dashboard for BMW 7 Series E23 733i (1982)

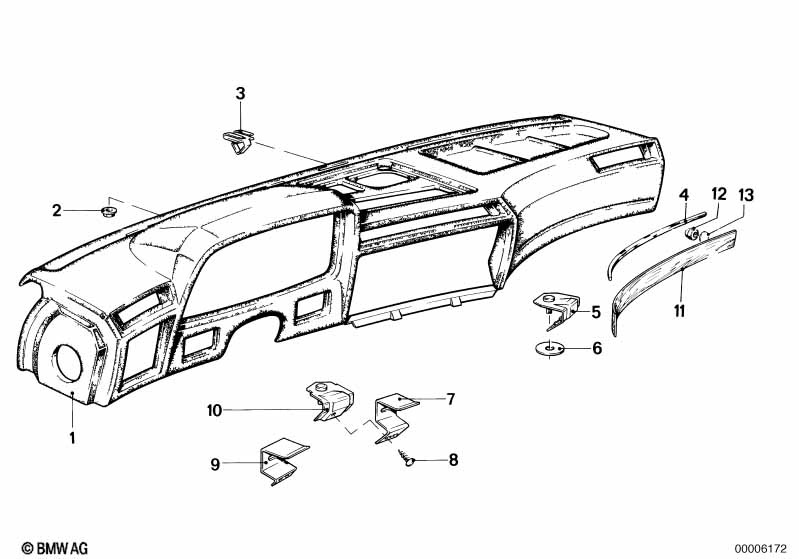

This Trim panel dashboard technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel dashboard | ANTHRAZIT | 1 | 51451911698 | $950.86 | ENDED | Shop at ECS Tuning | |||
| 02 | Hex nut with plate | M6 | 6 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 03 | Clamp | 2 | 51451852827 | $0.97 | Shop at ECS Tuning | |||||
| 03 | Clamp | 2 | 51451902637 | $1.00 | Shop at ECS Tuning | |||||
| 04 | Decorative strip | 1 | 51451857705 | $56.36 | ENDED | Shop at ECS Tuning | ||||
| 05 | Support | 1 | 51451852782 | ENDED | Shop at ECS Tuning | |||||
| 06 | Intermediate piece | 8 | 51451836016 | $0.17 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bow | 1 | 09/1982 | 51451854985 | $1.90 | ENDED | Shop at ECS Tuning | |||
| 08 | Hex head screw | ST4,8X13-ZN3 | 6 | 09/1982 | 07119904285 | $0.38 | Shop at ECS Tuning | |||
| 09 | Bow | 1 | 09/1982 | 51451854984 | ENDED | Shop at ECS Tuning | ||||
| 10 | Support | 1 | 51451852973 | $2.66 | ENDED | Shop at ECS Tuning |
