Trim panel dashboard lower left for BMW 7 Series E23 733i (1981)

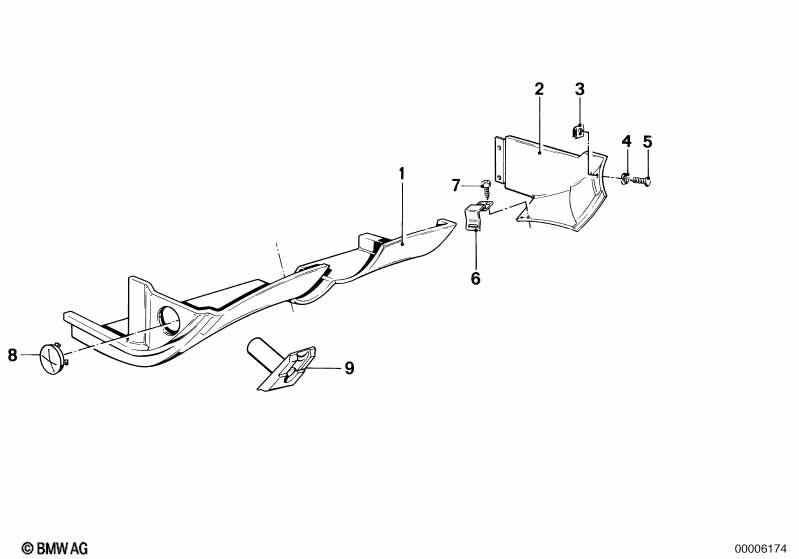

This Trim panel dashboard lower left technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel lower left | ANTHRAZIT | 1 | 51451854335 | $407.34 | ENDED | Shop at ECS Tuning | |||
| 01 | Trim panel lower left | MOCCA | 1 | 51451876547 | ENDED | Shop at ECS Tuning | ||||
| 01 | Trim panel lower left | PERGAMENT | 1 | 51451876549 | $426.31 | ENDED | Shop at ECS Tuning | |||
| 01 | Trim panel lower left | NUTRIA | 1 | 51451911577 | $225.43 | ENDED | Shop at ECS Tuning | |||
| 01 | Trim panel lower left | PERLBEIGE | 1 | 51451911579 | $314.71 | ENDED | Shop at ECS Tuning | |||
| 02 | Trim panel lower right | ANTHRAZIT | 1 | 51451854336 | ENDED | Shop at ECS Tuning | ||||
| 02 | Trim panel lower right | MOCCA | 1 | 51451876560 | ENDED | Shop at ECS Tuning | ||||
| 02 | Trim panel lower right | PERGAMENT | 1 | 51451876562 | ENDED | Shop at ECS Tuning | ||||
| 02 | Trim panel lower right | NUTRIA | 1 | 51451911586 | $225.43 | ENDED | Shop at ECS Tuning | |||
| 02 | Trim panel lower right | PERLBEIGE | 1 | 51451911588 | $60.82 | ENDED | Shop at ECS Tuning | |||
| 03 | Body nut | B2,9 | 4 | 51451819875 | $0.10 | Shop at ECS Tuning | ||||
| 04 | Hollow washer | D=4 | 4 | 51167061714 | ENDED | Shop at ECS Tuning | ||||
| 05 | Recessed oval head sheet-metal screw | ST2,9X19 | 4 | 07119902421 | $0.07 | Shop at ECS Tuning | ||||
| 06 | Support | 1 | 51451852325 | $0.93 | ENDED | Shop at ECS Tuning | ||||
| 07 | Fillister head self-tapping screw | ST2,9X6,5 | 2 | 07119907701 | $1.91 | Shop at ECS Tuning | ||||
| 08 | Plug | NYLONBRAUN | 1 | 51451851082 | ENDED | Shop at ECS Tuning | ||||
| 08 | Plug | ANTHRAZIT | 1 | 51451851084 | $1.90 | ENDED | Shop at ECS Tuning | |||
| 08 | Plug | FARNGRUEN | 1 | 51451851085 | ENDED | Shop at ECS Tuning | ||||
| 08 | Plug | MOCCA | 1 | 51451876601 | $1.90 | ENDED | Shop at ECS Tuning | |||
| 08 | Plug | PERGAMENT | 1 | 51451876602 | ENDED | Shop at ECS Tuning | ||||
| 08 | Plug | MITTELGRAU | 1 | 51451876603 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 733i Trim panel dashboard lower left?
- This technical diagram illustrates the Trim panel dashboard lower left within the Vehicle trim group for the 7 Series E23 733i produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Trim panel lower left (Part #51451854335).
- Which models use the hardware listed in this Trim panel dashboard lower left?
- The hardware and components featured in the Trim panel dashboard lower left are specific to the 7 Series E23 733i produced during 1981. These technical specifications ensure that parts like the Trim panel lower left (51451854335) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trim panel dashboard lower left assembly?
- Each item in the Trim panel dashboard lower left corresponds to the numbered list below the illustration. For the 7 Series E23 733i, you can identify the Trim panel lower left by locating its position on the schematic, which then links to the official BMW part number 51451854335 for the Vehicle trim section.
