Glove box driver side for BMW 7 Series E32 740iL (1994)

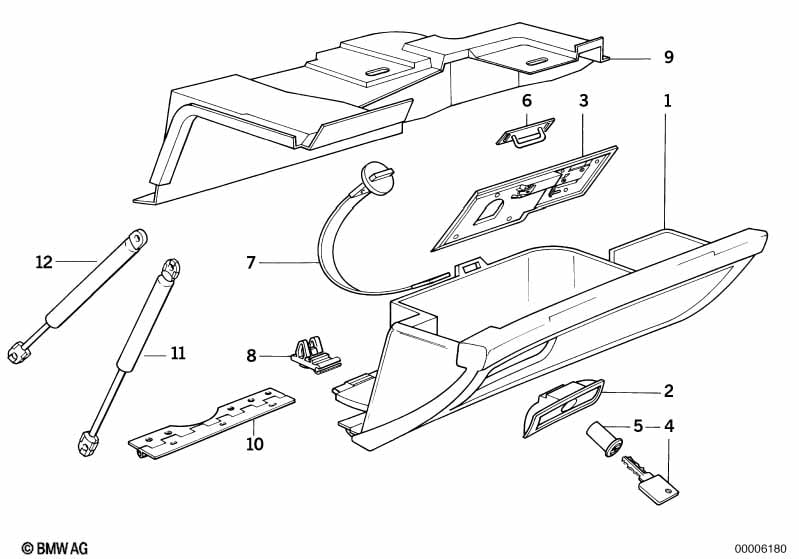

This Glove box driver side technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Glove box driver side vinyl | SCHWARZ | 1 | 51458114978 | ENDED | Shop at ECS Tuning | ||||
| 01 | Glove box driver side vinyl | SILBERGRAU HELL | 1 | 09/1990 | 51458140803 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box driver side vinyl | ULTRAMARIN | 1 | 09/1990 | 51458140804 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box driver side vinyl | PERGAMENT | 1 | 09/1990 | 51458140805 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box driver side vinyl | SILBERGRAU | 1 | 09/1991 | 51458147742 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO LEATHER VERSI.WALKNAPPA | ||||||||||
| 01 | Glove box driver side leather | 0232 SCHWARZ | 1 | 51458115012 | ENDED | Shop at ECS Tuning | ||||
| 01 | Glove box driver side leather | SILBERGRAU HELL | 1 | 09/1990 | 51458141105 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box driver side leather | ULTRAMARIN | 1 | 09/1990 | 51458141106 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box driver side leather | PERGAMENT | 1 | 09/1990 | 51458141107 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box driver side leather | PERGAMENT HELL | 1 | 09/1990 | 51458141108 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box driver side leather | SILBERGRAU | 1 | 09/1991 | 51458147744 | ENDED | Shop at ECS Tuning | |||
| INDIVIDUAL SERIES 93/94 | ||||||||||
| 01 | Glove box driver side leather | CHAMPAGNER | 1 | 51452263055 | ENDED | Shop at ECS Tuning | ||||
| 01 | Glove box driver side leather | MEXICOGRUEN | 1 | 51452263057 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Leather trim Buffalo |
=Yes |
|||||||||
| 01 | Glove box driver side leather | ANTHRAZIT`91 | 1 | 09/1990 | 51458141110 | ENDED | Shop at ECS Tuning | |||
| 02 | Catch lower part | SCHWARZ | 1 | 51451963608 | ENDED | Shop at ECS Tuning | ||||
| 02 | Catch lower part | KARMESINROT | 1 | 09/1988 | 51458113790 | ENDED | Shop at ECS Tuning | |||
| 02 | Catch lower part | SILBERGRAU | 1 | 09/1990 | 51458140851 | ENDED | Shop at ECS Tuning | |||
| 02 | Catch lower part | SILBERGRAU HELL | 1 | 09/1990 | 51458140852 | ENDED | Shop at ECS Tuning | |||
| 02 | Catch lower part | ULTRAMARIN | 1 | 09/1990 | 51458140853 | ENDED | Shop at ECS Tuning | |||
| 02 | Catch lower part | PERGAMENT | 1 | 09/1990 | 51458140854 | ENDED | Shop at ECS Tuning | |||
| 02 | Catch lower part | PERGAMENT HELL | 1 | 09/1990 | 51458141262 | ENDED | Shop at ECS Tuning | |||
| 03 | Catch upper part | 1 | 51451928822 | ENDED | Shop at ECS Tuning | |||||
| 04 | Rep.kit f lock cylinder | 1 | 51169061388 | $36.91 | Shop at ECS Tuning | |||||
| 05 | Rep.kit f lock cylinder | 1 | 51169061388 | $36.91 | Shop at ECS Tuning | |||||
| 06 | Catch | 1 | 10/1987 | 51458101447 | $10.03 | Shop at ECS Tuning | ||||
| 07 | Joint link | 1 | 51451948273 | $2.70 | Shop at ECS Tuning | |||||
| 09 | Cover | 1 | 51451948578 | ENDED | Shop at ECS Tuning | |||||
| 10 | Hinge | 1 | 51451975309 | $7.43 | Shop at ECS Tuning | |||||
| 11 | Absorber | 25N | 1 | 51161954684 | $34.68 | ENDED | Shop at ECS Tuning | |||
| 12 | Absorber | 1 | 51161928872 | $64.70 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
