Trim panel dashboard for BMW 3 Series E30 325i (1989)

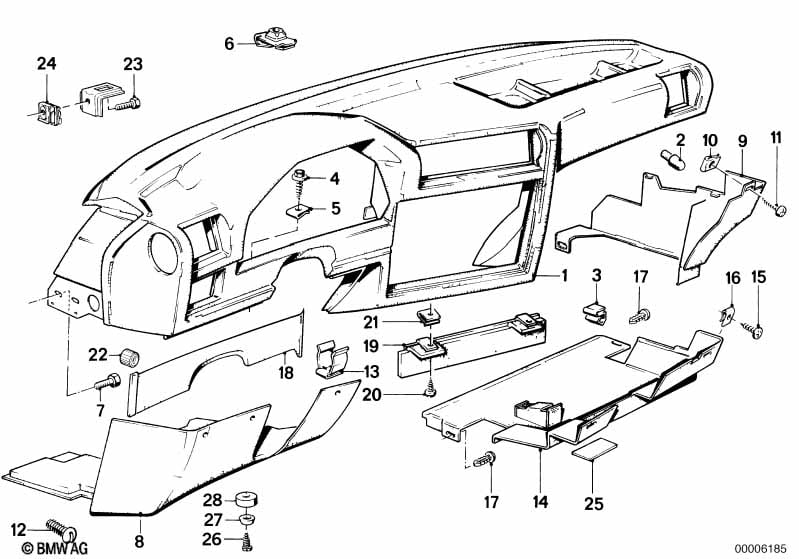

This Trim panel dashboard technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel dashboard | 1 | 51451941532 | $1276.41 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rubber buffer | 2 | 51451936105 | $0.50 | Shop at ECS Tuning | |||||
| 03 | Clamp | 2 | 51451852827 | $0.97 | Shop at ECS Tuning | |||||
| 04 | Hexagon sheet-metal bolt | ST6,3X16-R-U2-Z | 1 | 07119905017 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Body nut | ST6,3-1-ZNS3 | 1 | 07129904231 | Shop at ECS Tuning | |||||
| 06 | C-clip nut | M6 | 4 | 07147151144 | $0.74 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X12-U2-8.8 | 4 | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
| 08 | Trim panel lower left | ANTHRAZIT | 1 | 12/1984 | 51451917351 | $88.14 | ENDED | Shop at ECS Tuning | ||
| ONLY APPLIES TO EDITION | ||||||||||
| 08 | Trim panel lower left | ANTHRAZIT | 1 | 51451917351 | $88.14 | ENDED | Shop at ECS Tuning | |||
| 08 | Trim panel lower left | SILBER | 1 | 51458121957 | $90.40 | ENDED | Shop at ECS Tuning | |||
| 08 | Trim panel lower left | INDIGO | 1 | 51458121959 | $90.40 | ENDED | Shop at ECS Tuning | |||
| 09 | Trim panel lower right | 1 | 51451906932 | $48.36 | Shop at ECS Tuning | |||||
| 10 | Body nut | B3,9 | 1 | 51131914097 | $1.03 | Shop at ECS Tuning | ||||
| 11 | Fillister head self-tapping screw | ST3,9X16 | 1 | 07119906745 | $0.29 | ENDED | Shop at ECS Tuning | |||
| 12 | Lock | 3 | 51451916579 | $0.29 | Shop at ECS Tuning | |||||
| 13 | Holder | 1 | 51451906532 | $2.73 | Shop at ECS Tuning | |||||
| 14 | Covering glove box | 1 | 51161911985 | $18.05 | ENDED | Shop at ECS Tuning | ||||
| 15 | Fillister head self-tapping screw | ST3,9X13 | 2 | 07147202502 | $0.26 | Shop at ECS Tuning | ||||
| 16 | Body nut | B3,9 | 2 | 51131914097 | $1.03 | Shop at ECS Tuning | ||||
| 17 | Lock | 2 | 51451914869 | $0.29 | Shop at ECS Tuning | |||||
| 17 | Lock | 2 | 51711916197 | $1.35 | Shop at ECS Tuning | |||||
| 18 | Dash board covering | 1 | 62111370657 | $9.66 | Shop at ECS Tuning | |||||
| 22 | Knurled head nut | M5 | 2 | 62148480019 | $3.68 | Shop at ECS Tuning | ||||
| 23 | Hex bolt with washer | M6X16-Z3-2 | 4 | 07119915021 | $0.47 | Shop at ECS Tuning | ||||
| 24 | Nut holder | M6 | 4 | 52101828543 | $1.15 | Shop at ECS Tuning | ||||
| 25 | Set felt strip self-adhesive | 1 | 01/1993 | 51452353024 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
