Trim panel dashboard for BMW 3 Series E30 320i (1991)

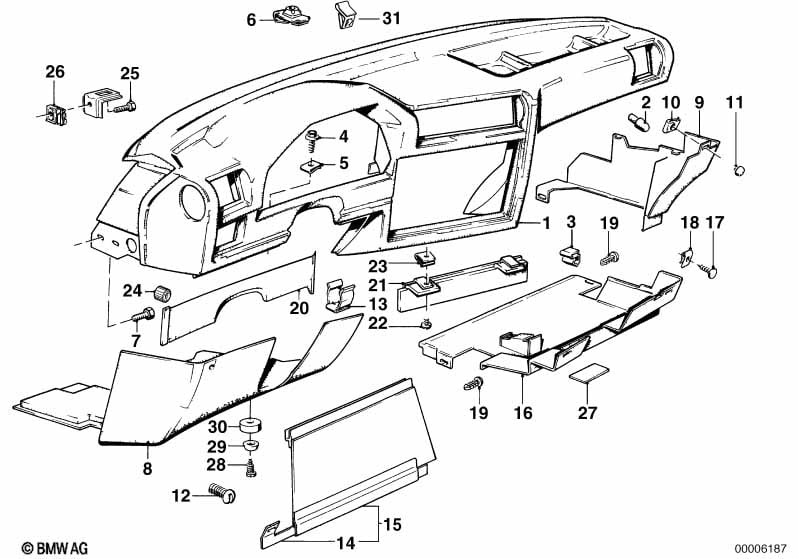

This Trim panel dashboard technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel dashboard | 1 | 51451941532 | $1276.41 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rubber buffer | 2 | 51451917675 | $0.50 | Shop at ECS Tuning | |||||
| 02 | Rubber buffer | 2 | 51451936105 | $0.50 | Shop at ECS Tuning | |||||
| 03 | Clamp | 2 | 51451852827 | $0.97 | Shop at ECS Tuning | |||||
| 04 | Hexagon sheet-metal bolt | ST6,3X16-R-U2-Z | 1 | 07119905017 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Body nut | ST6,3-1-ZNS3 | 1 | 07129904231 | Shop at ECS Tuning | |||||
| 06 | C-clip nut | M6 | 4 | 07147151144 | $0.74 | Shop at ECS Tuning | ||||
| 06 | Body nut | B6,5 | 4 | 32412482060 | $0.20 | ENDED | Shop at ECS Tuning | |||
| 07 | Hex bolt with washer | M6X12-U2-8.8 | 4 | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
| 08 | Trim panel lower left | ANTHRAZIT | 1 | 51451884247 | $88.14 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Headlight aim control |
=Yes |
|||||||||
| 08 | Trim panel lower left | ANTHRAZIT | 1 | 51451917353 | $88.14 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Airbag |
=Yes |
|||||||||
| 08 | Trim panel lower left | 1 | 09/1985 | 51451936217 | $95.46 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Airbag and Headlight aim control |
=Yes =Yes |
|||||||||
| 08 | Trim panel lower left | 1 | 09/1985 | 51451936221 | $90.40 | ENDED | Shop at ECS Tuning | |||
| For vehicles with On-board computer and Outdoor temperature/digital clock |
=Yes =Yes |
|||||||||
| 08 | Trim panel lower left | ANTHRAZIT | 1 | 51451917351 | $88.14 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Airbag and On-board computer and Outdoor temperature/digital clock |
=Yes =Yes =Yes |
|||||||||
| 08 | Trim panel lower left | 1 | 09/1985 | 51451936223 | $95.46 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Headlight aim control and On-board computer and Outdoor temperature/digital clock |
=Yes =Yes =Yes |
|||||||||
| 08 | Trim panel lower left | ANTHRAZIT | 1 | 09/1985 | 51451917355 | $88.14 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Airbag and Headlight aim control and On-board computer and Outdoor temperature/digital clock |
=Yes =Yes =Yes =Yes |
|||||||||
| 08 | Trim panel lower left | 1 | 09/1985 | 51451936219 | $95.46 | ENDED | Shop at ECS Tuning | |||
| 09 | Trim panel lower right | 1 | 51451906932 | $48.36 | Shop at ECS Tuning | |||||
| 10 | Body nut | B3,9 | 1 | 51131914097 | $1.03 | Shop at ECS Tuning | ||||
| 11 | Fillister head self-tapping screw | ST3,9X16 | 1 | 07119906745 | $0.29 | ENDED | Shop at ECS Tuning | |||
| 12 | Lock | 1 | 51161932255 | $0.25 | Shop at ECS Tuning | |||||
| 12 | Lock | X | 51451914869 | $0.29 | Shop at ECS Tuning | |||||
| 12 | Lock | X | 51451916579 | $0.29 | Shop at ECS Tuning | |||||
| 13 | Holder | 1 | 51451906532 | $2.73 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO CONTROL UNIT L-JETRONIC CONTROL UNIT CARBURETOR |
||||||||||
| 16 | Covering glove box | 1 | 51161911985 | $18.05 | ENDED | Shop at ECS Tuning | ||||
| 17 | Fillister head self-tapping screw | ST3,9X13 | 2 | 07147202502 | $0.26 | Shop at ECS Tuning | ||||
| 18 | Body nut | B3,9 | 2 | 51131914097 | $1.03 | Shop at ECS Tuning | ||||
| 19 | Lock | 2 | 51451914869 | $0.29 | Shop at ECS Tuning | |||||
| 19 | Lock | 2 | 51711916197 | $1.35 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO CONTROL UNIT L-JETRONIC CONTROL UNIT CARBURETOR |
||||||||||
| 20 | Dash board covering | 1 | 62111370657 | $9.66 | Shop at ECS Tuning | |||||
| 24 | Knurled head nut | M5 | 2 | 62148480019 | $3.68 | Shop at ECS Tuning | ||||
| 25 | Hex bolt with washer | M6X16-Z3-2 | 4 | 07119915021 | $0.47 | Shop at ECS Tuning | ||||
| 26 | C-clip nut | M6 | 4 | 07147151144 | $0.74 | Shop at ECS Tuning | ||||
| 26 | Nut holder | M6 | 4 | 52101828543 | $1.15 | Shop at ECS Tuning | ||||
| For vehicles with Airbag |
=Yes |
|||||||||
| 28 | Recessed oval head sheet-metal screw | ST4,2X32 | 1 | 07119902475 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 29 | Hollow washer | 1 | 51211859979 | $0.40 | Shop at ECS Tuning | |||||
| 30 | Spacer | 1 | 51161943121 | $0.48 | Shop at ECS Tuning | |||||
| 31 | Clamp | 1 | 51451902637 | $1.00 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
