Trim panel dashboard LOWER for BMW 6 Series E24 633CSi (1979)

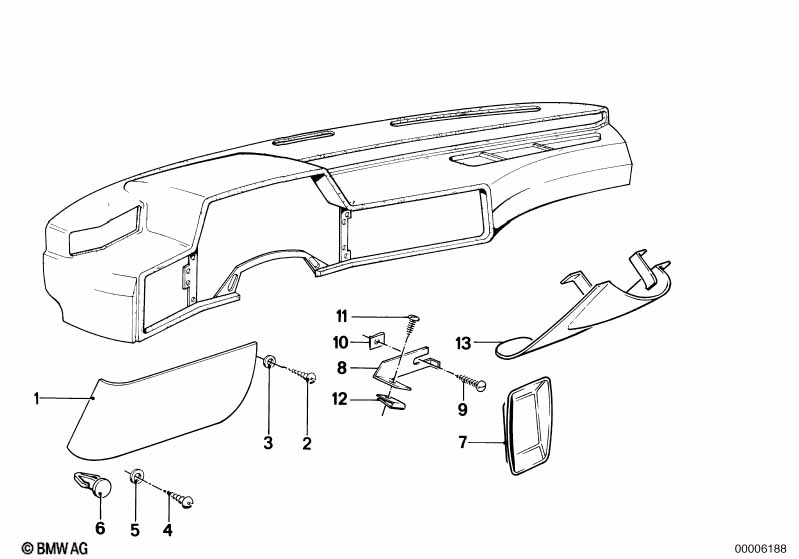

This Trim panel dashboard LOWER technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel lower | HELLGRAU | 1 | 09/1979 | 51451839997 | ENDED | Shop at ECS Tuning | |||
| 01 | Trim panel lower | PACIFIC | 1 | 09/1979 | 51451875497 | $104.63 | ENDED | Shop at ECS Tuning | ||
| 01 | Trim panel lower | ANTHRAZIT | 1 | 09/1979 | 51451875505 | $49.09 | Shop at ECS Tuning | |||
| 01 | Trim panel lower | MITTELGRAU | 1 | 08/1979 | 09/1981 | 51451875503 | ENDED | Shop at ECS Tuning | ||
| 01 | Trim panel lower | MOCCA | 1 | 08/1979 | 09/1982 | 51451875499 | ENDED | Shop at ECS Tuning | ||
| 01 | Trim panel lower | ANTHRAZIT | 1 | 08/1979 | 09/1982 | 51451875505 | $49.09 | Shop at ECS Tuning | ||
| 01 | Trim panel lower | PACIFIC | 1 | 08/1979 | 06/1987 | 51451932527 | ENDED | Shop at ECS Tuning | ||
| 01 | Trim panel lower | ANTHRAZIT | 1 | 08/1979 | 51451932525 | $171.77 | ENDED | Shop at ECS Tuning | ||
| 02 | Fillister head self-tapping screw | ST3,5X16 | 2 | 08/1979 | 07119905240 | Shop at ECS Tuning | ||||
| 03 | Washer | 4-200 HV-ZNS3 | 2 | 08/1979 | 07119904207 | Shop at ECS Tuning | ||||
| 04 | Fillister head self-tapping screw | ST3,5X13 | 2 | 08/1979 | 07119906720 | $0.47 | Shop at ECS Tuning | |||
| 05 | Washer | 9X4,3X0,8-200HV | 2 | 08/1979 | 07119904205 | $0.07 | Shop at ECS Tuning | |||
| 06 | Clamp | 1 | 08/1979 | 51451859442 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Cover | 1 | 08/1979 | 51451839481 | $1.79 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
