Trim panel dashboard for BMW 3 Series E30 325i (1989)

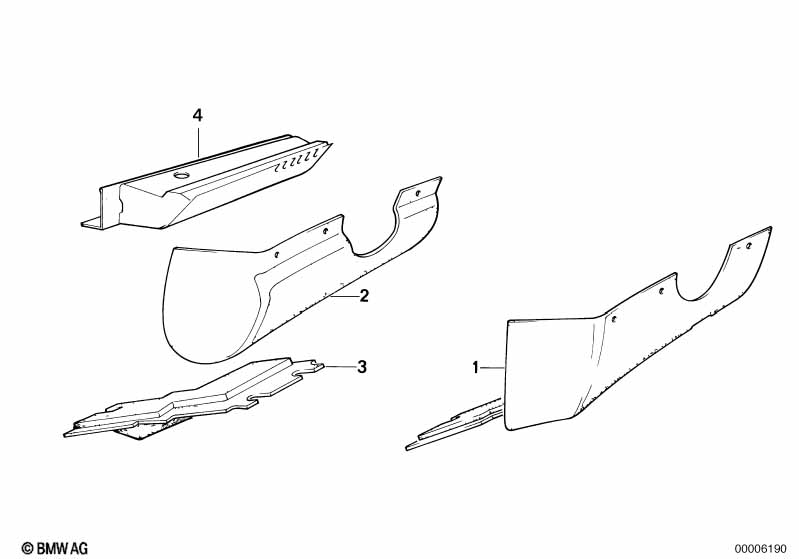

This Trim panel dashboard technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel lower left | ANTHRAZIT | 1 | 12/1984 | 51451917351 | $88.14 | ENDED | Shop at ECS Tuning | ||
| ONLY APPLIES TO EDITION | ||||||||||
| 01 | Trim panel lower left | ANTHRAZIT | 1 | 51451917351 | $88.14 | ENDED | Shop at ECS Tuning | |||
| 01 | Trim panel lower left | SILBER | 1 | 51458121957 | $90.40 | ENDED | Shop at ECS Tuning | |||
| 01 | Trim panel lower left | INDIGO | 1 | 51458121959 | $90.40 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Airbag |
=Yes |
|||||||||
| 02 | Trim panel lower left | 1 | 51451885731 | $466.95 | Shop at ECS Tuning | |||||
| 03 | Trim panel lower left | 1 | 51451885733 | $54.68 | ENDED | Shop at ECS Tuning | ||||
| 04 | Knee protector | 1 | 51451885713 | $195.30 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325i Trim panel dashboard?
- This technical diagram illustrates the Trim panel dashboard within the Vehicle trim group for the 3 Series E30 325i produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Trim panel lower left (Part #51451917351).
- Which models use the hardware listed in this Trim panel dashboard?
- The hardware and components featured in the Trim panel dashboard are specific to the 3 Series E30 325i produced during 1989. These technical specifications ensure that parts like the Trim panel lower left (51451917351) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trim panel dashboard assembly?
- Each item in the Trim panel dashboard corresponds to the numbered list below the illustration. For the 3 Series E30 325i, you can identify the Trim panel lower left by locating its position on the schematic, which then links to the official BMW part number 51451917351 for the Vehicle trim section.
