Glove box lock for BMW 3 Series E21 320i (1977)

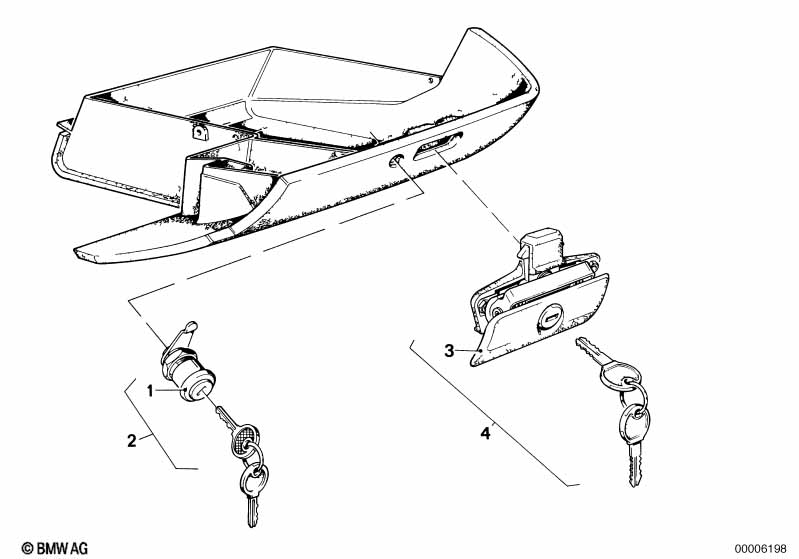

This Glove box lock technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Catch with code | 1 | 08/1979 | 51161849353 | ENDED | Shop at ECS Tuning | ||||
| 02 | Catch with key | 1 | 08/1979 | 51161849351 | $32.25 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Glove box lock?
- This technical diagram illustrates the Glove box lock within the Vehicle trim group for the 3 Series E21 320i produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Catch with code (Part #51161849353).
- Which models use the hardware listed in this Glove box lock?
- The hardware and components featured in the Glove box lock are specific to the 3 Series E21 320i produced during 1977. These technical specifications ensure that parts like the Catch with code (51161849353) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Glove box lock assembly?
- Each item in the Glove box lock corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Catch with code by locating its position on the schematic, which then links to the official BMW part number 51161849353 for the Vehicle trim section.
