Glove box mounting parts for BMW 5 Series E12 525 (1976)

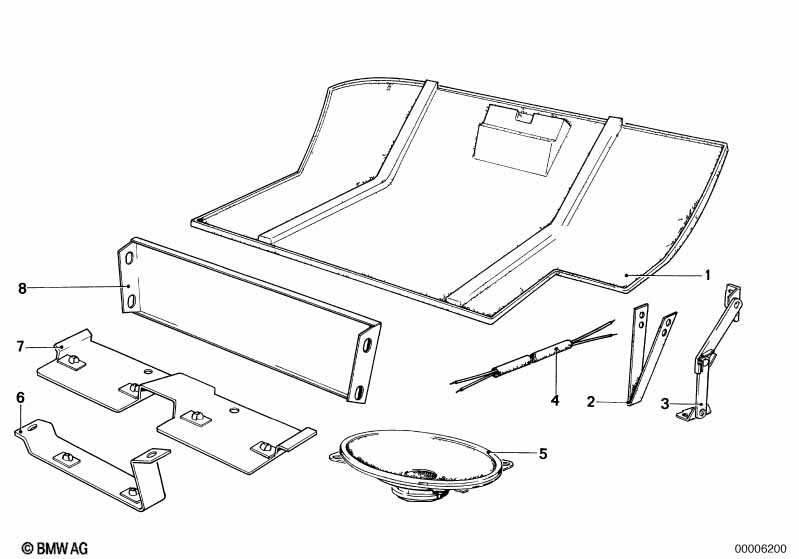

This Glove box mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 01 | Cover | 1 | 51161858234 | ENDED | Shop at ECS Tuning | |||||
| 03 | Joint link left | 1 | 51161886491 | ENDED | Shop at ECS Tuning | |||||
| 03 | Joint link right | 1 | 51161886492 | ENDED | Shop at ECS Tuning | |||||
| 04 | Wiring set | 1 | 61121354030 | ENDED | Shop at ECS Tuning | |||||
| 05 | Loudspeaker | 4-OHM/4/6W | 1 | 65121357435 | ENDED | Shop at ECS Tuning | ||||
| 05 | Loudspeaker | 4-OHM/8/20W | 1 | 65121375109 | $25.86 | Shop at ECS Tuning | ||||
| 06 | Holder | 1 | 41131853626 | ENDED | Shop at ECS Tuning | |||||
| 07 | Holder | 1 | 41241853628 | ENDED | Shop at ECS Tuning | |||||
| 08 | Switch support | 1 | 65601826316 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
