Glove box for BMW 7 Series E32 735iL (1992)

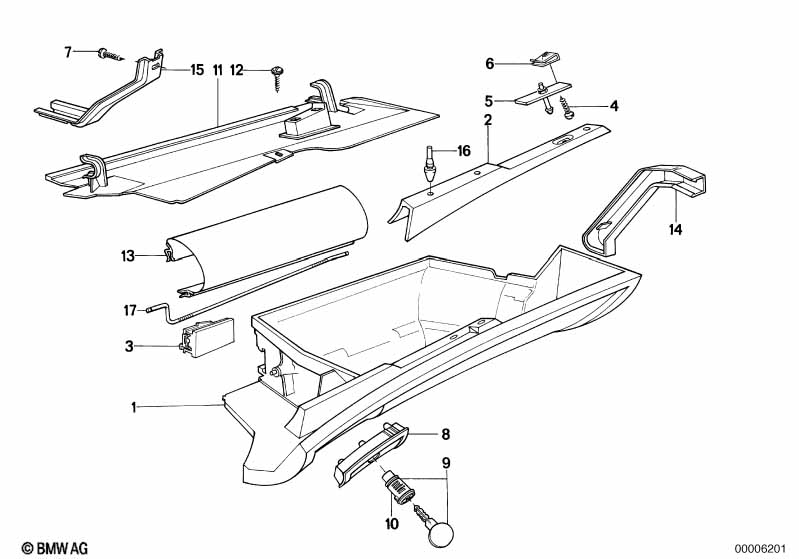

This Glove box technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 735iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Glove box vinyl | SCHWARZ | 1 | 51168114078 | $284.95 | Shop at ECS Tuning | ||||
| 01 | Glove box vinyl | SILBERGRAU HELL | 1 | 09/1990 | 51168136995 | $301.32 | ENDED | Shop at ECS Tuning | ||
| 01 | Glove box vinyl | ULTRAMARIN | 1 | 09/1990 | 51168136996 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box vinyl | PERGAMENT | 1 | 09/1990 | 51168136997 | $227.97 | ENDED | Shop at ECS Tuning | ||
| 01 | Glove box vinyl | BRASIL | 1 | 09/1990 | 51168136998 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box vinyl | SILBERGRAU | 1 | 09/1991 | 51168147704 | $228.78 | ENDED | Shop at ECS Tuning | ||
| ONLY APPLIES TO LEATHER VERSI.WALKNAPPA | ||||||||||
| 01 | Glove box, leather | 0232SCHWARZ | 1 | 51168114112 | $622.17 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box, leather | 0236 ANTILOPE | 1 | 51168115500 | $622.17 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box, leather | KARMESINROT | 1 | 09/1988 | 51168114122 | $622.17 | ENDED | Shop at ECS Tuning | ||
| 01 | Glove box, leather | SILBERGRAU HELL | 1 | 09/1990 | 51168139451 | $622.17 | ENDED | Shop at ECS Tuning | ||
| 01 | Glove box, leather | ULTRAMARIN | 1 | 09/1990 | 51168139452 | $622.17 | ENDED | Shop at ECS Tuning | ||
| 01 | Glove box, leather | PERGAMENT | 1 | 09/1990 | 51168139453 | $622.17 | ENDED | Shop at ECS Tuning | ||
| 01 | Glove box, leather | PERGAMENT HELL | 1 | 09/1990 | 51168139454 | $622.17 | ENDED | Shop at ECS Tuning | ||
| 01 | Glove box, leather | BRASIL | 1 | 09/1990 | 51168139455 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box, leather | SILBERGRAU | 1 | 09/1991 | 51168147706 | $622.17 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather trim Buffalo |
=Yes |
|||||||||
| 01 | Glove box, leather | ANTHRAZIT`91 | 1 | 09/1990 | 51168139456 | $708.66 | ENDED | Shop at ECS Tuning | ||
| 01 | Glove box, leather | BRASIL | 1 | 09/1990 | 51168139457 | ENDED | Shop at ECS Tuning | |||
| 02 | Catch upper part | 1 | 51161928718 | $48.00 | Shop at ECS Tuning | |||||
| 03 | Holder | 2 | 51161928629 | $1.82 | Shop at ECS Tuning | |||||
| 04 | Fillister head screw | M4X10-4.8-H | 5 | 07119907616 | $1.07 | Shop at ECS Tuning | ||||
| 05 | Catch | 1 | 51161948236 | $8.70 | Shop at ECS Tuning | |||||
| 06 | C-clip nut | 2 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 07 | Fillister head self-tapping screw | ST4,2X13-Z2 | 2 | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 08 | Glove box lock | SCHWARZ | 1 | 51161957700 | $45.63 | Shop at ECS Tuning | ||||
| 08 | Glove box lock | KARMESINROT | 1 | 09/1988 | 51168113670 | $33.20 | ENDED | Shop at ECS Tuning | ||
| 08 | Glove box lock | SILBERGRAU | 1 | 09/1990 | 51168139594 | $45.63 | ENDED | Shop at ECS Tuning | ||
| 08 | Glove box lock | SILBERGRAU HELL | 1 | 09/1990 | 51168139595 | $33.20 | ENDED | Shop at ECS Tuning | ||
| 08 | Glove box lock | ULTRAMARIN | 1 | 09/1990 | 51168139596 | $33.20 | ENDED | Shop at ECS Tuning | ||
| 08 | Glove box lock | PERGAMENT | 1 | 09/1990 | 51168139597 | $45.63 | ENDED | Shop at ECS Tuning | ||
| 08 | Glove box lock | PERGAMENT HELL | 1 | 09/1990 | 51168139598 | $45.63 | ENDED | Shop at ECS Tuning | ||
| 08 | Glove box lock | BRASIL | 1 | 09/1990 | 51168139599 | $37.67 | ENDED | Shop at ECS Tuning | ||
| 09 | Rep.kit f lock cylinder | 1 | 51169061388 | $36.91 | Shop at ECS Tuning | |||||
| 10 | Rep.kit f lock cylinder | 1 | 51169061388 | $36.91 | Shop at ECS Tuning | |||||
| 11 | Cover | 1 | 51161964726 | $15.97 | ENDED | Shop at ECS Tuning | ||||
| 12 | Fillister head self-tapping screw | ST3,9X13 | 1 | 07147202502 | $0.26 | Shop at ECS Tuning | ||||
| 13 | Cover | 1 | 51161951165 | ENDED | Shop at ECS Tuning | |||||
| 14 | Cover | 1 | 51161951169 | $3.38 | ENDED | Shop at ECS Tuning | ||||
| 15 | Holder | 1 | 51451928109 | $4.35 | ENDED | Shop at ECS Tuning | ||||
| 16 | Rubber buffer | 1 | 51451917675 | $0.50 | Shop at ECS Tuning | |||||
| 16 | Rubber buffer | 1 | 51451936105 | $0.50 | Shop at ECS Tuning | |||||
| 17 | Axle | 1 | 51161938858 | $6.22 | Shop at ECS Tuning | |||||
