Glove box mounting parts for BMW 6 Series E24 630CSi (1977)

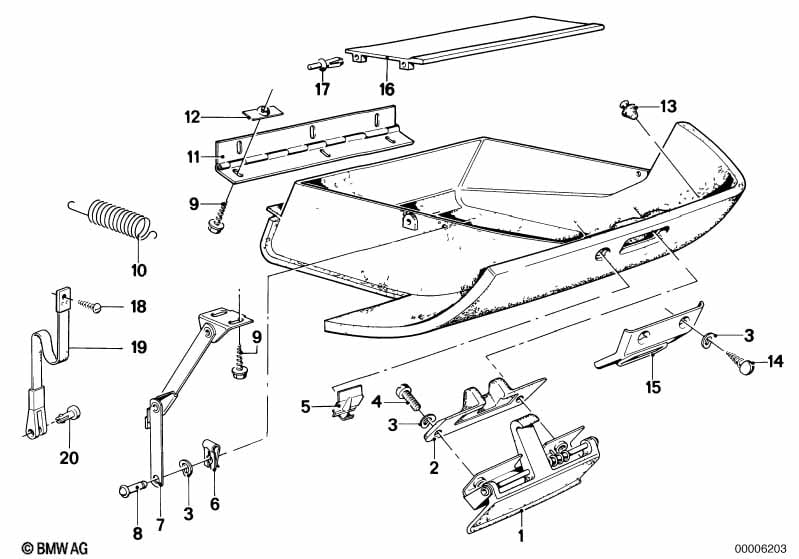

This Glove box mounting parts technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 630CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lock | 1 | 09/1977 | 51161847754 | $9.16 | ENDED | Shop at ECS Tuning | |||
| 03 | Wave washer | B5 | 4 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Fillister head screw | M5X12-ZN | 2 | 09/1977 | 07119907627 | $0.43 | Shop at ECS Tuning | |||
| 05 | Catch | 1 | 09/1977 | 51451859496 | ENDED | Shop at ECS Tuning | ||||
| 06 | Clamp | A5 | 2 | 07129934906 | $0.53 | Shop at ECS Tuning | ||||
| 07 | Joint link left | 1 | 51161817521 | $6.31 | Shop at ECS Tuning | |||||
| 07 | Joint link | 1 | 51161817522 | $6.31 | Shop at ECS Tuning | |||||
| 08 | Pin | 2 | 51161805903 | $0.38 | Shop at ECS Tuning | |||||
| 09 | Hex head screw | ST4,8X16-ZNS3 | X | 09/1982 | 07119901299 | $0.25 | Shop at ECS Tuning | |||
| 10 | Spring | 1 | 51161805586 | $1.80 | ENDED | Shop at ECS Tuning | ||||
| 11 | Hinge | 1 | 09/1982 | 51161813261 | $8.82 | ENDED | Shop at ECS Tuning | |||
| 12 | Nut | ST4,8-1 | 4 | 07129926108 | $0.20 | Shop at ECS Tuning | ||||
| 13 | Rubber buffer | 2 | 51451917675 | $0.50 | Shop at ECS Tuning | |||||
| 13 | Rubber buffer | 2 | 51451936105 | $0.50 | Shop at ECS Tuning | |||||
| 14 | Fillister head self-tapping screw | ST4,8X16 Z2 | 2 | 07119907789 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 15 | Catch | 1 | 09/1977 | 51161817655 | $2.43 | ENDED | Shop at ECS Tuning |
