Glove box for BMW 7 Series E32 730i (1993)

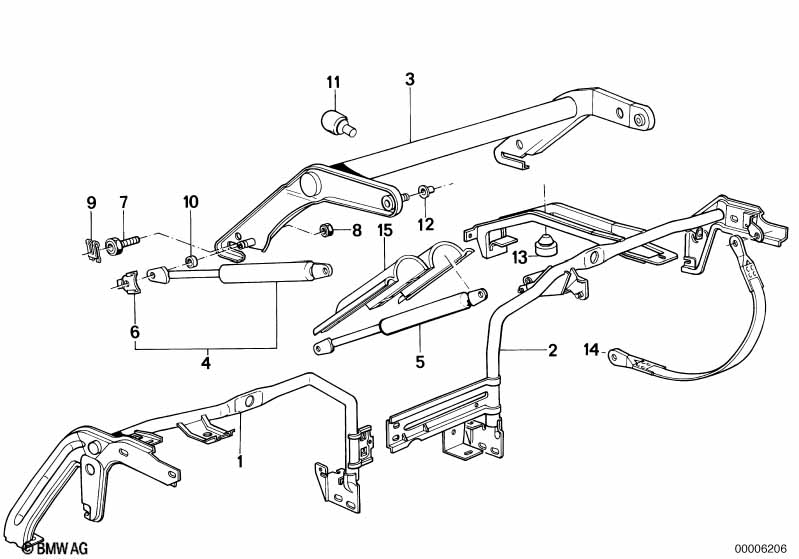

This Glove box technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting frame right | 1 | 04/1989 | 51458113056 | ENDED | Shop at ECS Tuning | ||||
| 02 | Supporting frame right | 1 | 51451938737 | ENDED | Shop at ECS Tuning | |||||
| 03 | Connection piece | 1 | 51161948139 | ENDED | Shop at ECS Tuning | |||||
| 04 | Absorber | 25N | 1 | 51161954684 | $34.68 | ENDED | Shop at ECS Tuning | |||
| 05 | Gas pressurized spring | 1 | 51161948137 | $32.48 | Shop at ECS Tuning | |||||
| 06 | Circlip | X | 51161928873 | $1.34 | Shop at ECS Tuning | |||||
| 07 | Screw | 2 | 51161938864 | $3.45 | Shop at ECS Tuning | |||||
| 10 | Spacer bush | 1 | 51161908798 | $3.73 | ENDED | Shop at ECS Tuning | ||||
| 11 | Bump stop | 2 | 51451948135 | $0.75 | Shop at ECS Tuning | |||||
| 12 | Bush | 2 | 51451928867 | $0.48 | ENDED | Shop at ECS Tuning | ||||
| 13 | Stop buffer | 1 | 51451948136 | $1.26 | Shop at ECS Tuning | |||||
| 14 | Joint link | 1 | 51161938857 | $3.43 | Shop at ECS Tuning | |||||
| 15 | Cover | 1 | 61131379839 | $2.90 | ENDED | Shop at ECS Tuning |
