Glove box mounting parts for BMW 7 Series E23 735i (1985)

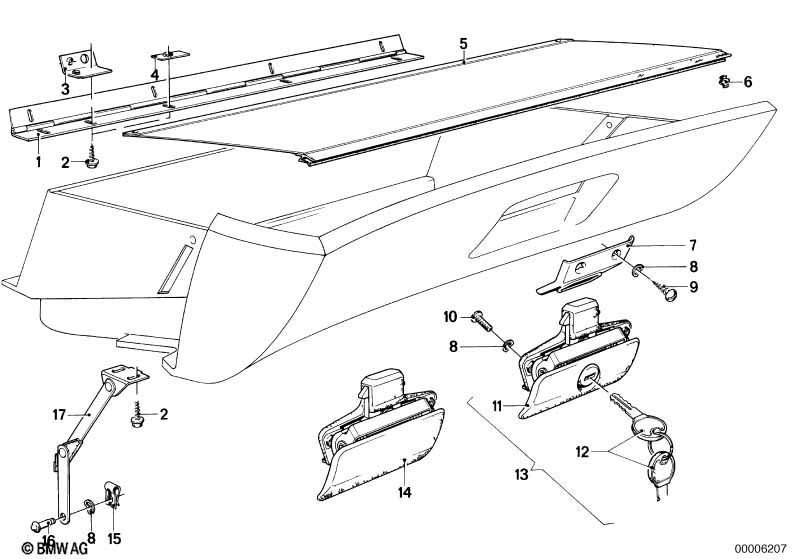

This Glove box mounting parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hinge | 1 | 51161813261 | $8.82 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex head screw | ST4,8X16-ZNS3 | 4 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 02 | Hex head screw | ST4,8X16-C-Z1 | 4 | 07119916945 | $0.18 | Shop at ECS Tuning | ||||
| 02 | Hex head screw | ST4,8X16-C-Z1 | 4 | 07119906265 | ENDED | Shop at ECS Tuning | ||||
| 03 | Support | 1 | 51161848470 | $0.28 | ENDED | Shop at ECS Tuning | ||||
| 04 | Nut | 4 | 51161848715 | $0.18 | ENDED | Shop at ECS Tuning | ||||
| 05 | Covering glove box | 1 | 51161880865 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Anti block system (ABS) |
=Yes |
|||||||||
| 05 | Covering glove box | 1 | 51161920055 | ENDED | Shop at ECS Tuning | |||||
| 06 | Rubber buffer | 2 | 51161812569 | ENDED | Shop at ECS Tuning | |||||
| 06 | Rubber buffer | 2 | 51175790035 | $5.97 | ENDED | Shop at ECS Tuning | ||||
| 06 | Rubber buffer | 2 | 51451917675 | $0.50 | Shop at ECS Tuning | |||||
| 07 | Catch | X | 51161848866 | $1.96 | Shop at ECS Tuning | |||||
| 08 | Wave washer | B5 | 6 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Fillister head self-tapping screw | ST4,8X16 Z2 | 2 | 07119907789 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 10 | Fillister head screw | M5X12-ZN | 2 | 07119907627 | $0.43 | Shop at ECS Tuning | ||||
| 11 | Catch with code | 1 | 51161853004 | $74.05 | ENDED | Shop at ECS Tuning | ||||
| 11 | Rep.kit f lock cylinder | 1 | 51169061387 | $36.59 | Shop at ECS Tuning | |||||
| 12 | General key (blank) | CODE* 10001 | X | 51211900892 | $30.64 | Shop at ECS Tuning | ||||
| 13 | Rep.kit f lock cylinder | 1 | 51169061387 | $36.59 | Shop at ECS Tuning | |||||
| 15 | Clamp | A5 | 2 | 07129934906 | $0.53 | Shop at ECS Tuning | ||||
| 16 | Pin | 2 | 51161805903 | $0.38 | Shop at ECS Tuning | |||||
| 17 | Joint link | 2 | 51161817522 | $6.31 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 735i Glove box mounting parts?
- This technical diagram illustrates the Glove box mounting parts within the Vehicle trim group for the 7 Series E23 735i produced during 1985. It provides a detailed exploded view of the components, identifying key parts such as the Hinge (Part #51161813261).
- Which models use the hardware listed in this Glove box mounting parts?
- The hardware and components featured in the Glove box mounting parts are specific to the 7 Series E23 735i produced during 1985. These technical specifications ensure that parts like the Hinge (51161813261) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Glove box mounting parts assembly?
- Each item in the Glove box mounting parts corresponds to the numbered list below the illustration. For the 7 Series E23 735i, you can identify the Hinge by locating its position on the schematic, which then links to the official BMW part number 51161813261 for the Vehicle trim section.
