Glove box for BMW 7 Series E23 728i (1982)

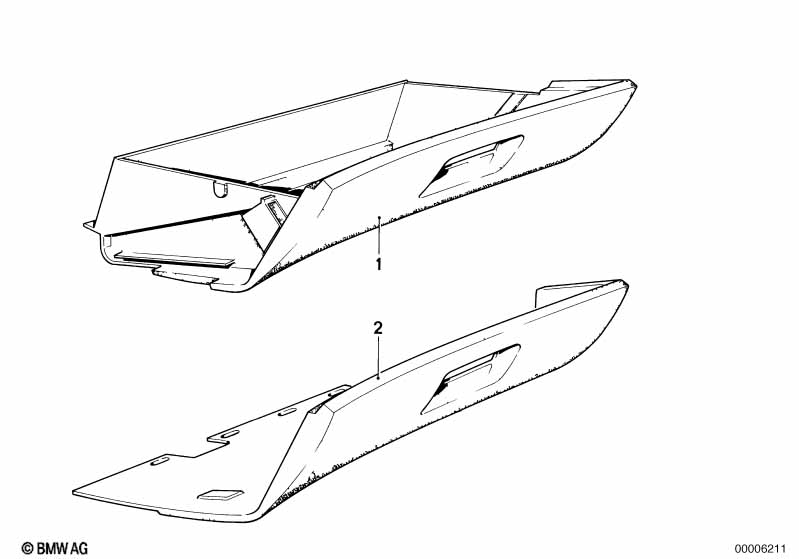

This Glove box technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Glove box | MOCCA | 1 | 09/1982 | 51161876399 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box | PERGAMENT | 1 | 09/1982 | 51161876400 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box | HELLGRAU | 1 | 51161856822 | ENDED | Shop at ECS Tuning | ||||
| 01 | Glove box | NYLONBRAUN | 1 | 51161856823 | ENDED | Shop at ECS Tuning | ||||
| 01 | Glove box | MARINEBLAU | 1 | 51161856824 | ENDED | Shop at ECS Tuning | ||||
| 01 | Glove box | FARNGRUEN | 1 | 51161856826 | ENDED | Shop at ECS Tuning | ||||
| 01 | Glove box | ANTHRAZIT | 1 | 51161880860 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Anti block system (ABS) |
=Yes |
|||||||||
| 01 | Glove box | ANTHRAZIT | 1 | 51161880860 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 02 | Covering radio telephone | MOCCA | 1 | 09/1982 | 51161865597 | ENDED | Shop at ECS Tuning | |||
| 02 | Covering radio telephone | ANTHRAZIT | 1 | 51161865596 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728i Glove box?
- This technical diagram illustrates the Glove box within the Vehicle trim group for the 7 Series E23 728i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Glove box (Part #51161876399).
- Which models use the hardware listed in this Glove box?
- The hardware and components featured in the Glove box are specific to the 7 Series E23 728i produced during 1982. These technical specifications ensure that parts like the Glove box (51161876399) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Glove box assembly?
- Each item in the Glove box corresponds to the numbered list below the illustration. For the 7 Series E23 728i, you can identify the Glove box by locating its position on the schematic, which then links to the official BMW part number 51161876399 for the Vehicle trim section.
