Glove box mounting parts for BMW 7 Series E23 728iS (1982)

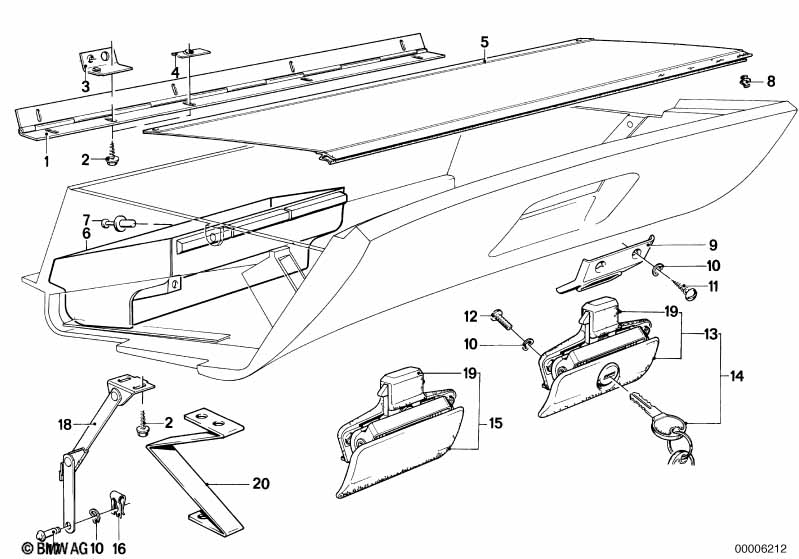

This Glove box mounting parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728iS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hinge | 1 | 51161813261 | $8.82 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex head screw | ST4,8X16-ZNS3 | 4 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 02 | Hex head screw | ST4,8X16-C-Z1 | 4 | 07119916945 | $0.18 | Shop at ECS Tuning | ||||
| 02 | Hex head screw | ST4,8X16-C-Z1 | 4 | 07119906265 | ENDED | Shop at ECS Tuning | ||||
| 03 | Support | 1 | 51161848470 | $0.28 | ENDED | Shop at ECS Tuning | ||||
| 04 | Nut | 4 | 51161848715 | $0.18 | ENDED | Shop at ECS Tuning | ||||
| 05 | Covering glove box | 1 | 02/1984 | 51161851776 | $18.41 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Airbag |
=Yes |
|||||||||
| 05 | Covering glove box | 1 | 51161930887 | $12.50 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Anti block system (ABS) |
=Yes |
|||||||||
| 05 | Covering glove box | 1 | 09/1983 | 51161871289 | $14.84 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Airbag |
=Yes |
|||||||||
| 06 | Cover | 1 | 51161930886 | ENDED | Shop at ECS Tuning | |||||
| 07 | Expanding rivet | 1 | 51161881149 | $0.20 | Shop at ECS Tuning | |||||
| 08 | Rubber buffer | 2 | 51451917675 | $0.50 | Shop at ECS Tuning | |||||
| 08 | Rubber buffer | 2 | 51451936105 | $0.50 | Shop at ECS Tuning | |||||
| 08 | Expanding rivet | 4 | 64221356171 | $0.28 | Shop at ECS Tuning | |||||
| 09 | Catch | 1 | 51161848866 | $1.96 | Shop at ECS Tuning | |||||
| 10 | Wave washer | B5 | 6 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Fillister head self-tapping screw | ST4,8X16 Z2 | 2 | 07119907789 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 12 | Fillister head screw | M5X12-ZN | 2 | 07119907627 | $0.43 | Shop at ECS Tuning | ||||
| 13 | Catch with code | 1 | 51161853004 | $74.05 | ENDED | Shop at ECS Tuning | ||||
| 13 | Rep.kit f lock cylinder | 1 | 51169061387 | $36.59 | Shop at ECS Tuning | |||||
| 14 | Rep.kit f lock cylinder | 1 | 51169061387 | $36.59 | Shop at ECS Tuning | |||||
| 15 | Locking kit | 1 | 51161848873 | $36.51 | Shop at ECS Tuning | |||||
| 16 | Clamp | A5 | 2 | 07129934906 | $0.53 | Shop at ECS Tuning | ||||
| 17 | Pin | 2 | 51161805903 | $0.38 | Shop at ECS Tuning | |||||
| 18 | Joint link left | 1 | 51161817521 | $6.31 | Shop at ECS Tuning | |||||
| 18 | Joint link | 1 | 51161817522 | $6.31 | Shop at ECS Tuning | |||||
| 19 | Catch upper part | 1 | 51161849472 | $11.28 | Shop at ECS Tuning | |||||
| 19 | Catch upper part | 1 | 51161955759 | $11.17 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
