Glove box mounting parts for BMW 5 Series E12 520 (1976)

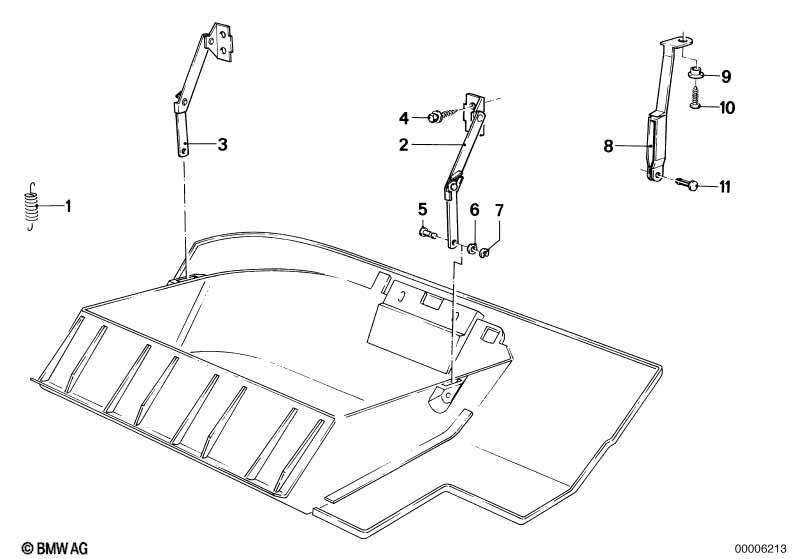

This Glove box mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spring | 1 | 51161805586 | $1.80 | ENDED | Shop at ECS Tuning | ||||
| 02 | Joint link left | 1 | 51161817521 | $6.31 | Shop at ECS Tuning | |||||
| 03 | Joint link | 1 | 51161817522 | $6.31 | Shop at ECS Tuning | |||||
| 04 | Hex head screw | ST4,8X16-C-Z1 | 4 | 07119916945 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Hex head screw | ST4,8X16-C-Z1 | 4 | 07119906265 | ENDED | Shop at ECS Tuning | ||||
| 05 | Pin | 2 | 51161805903 | $0.38 | Shop at ECS Tuning | |||||
| 06 | Wave washer | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Clamp | A5 | 2 | 07129934906 | $0.53 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
