Glove box for BMW 3 Series E30 325i (1989)

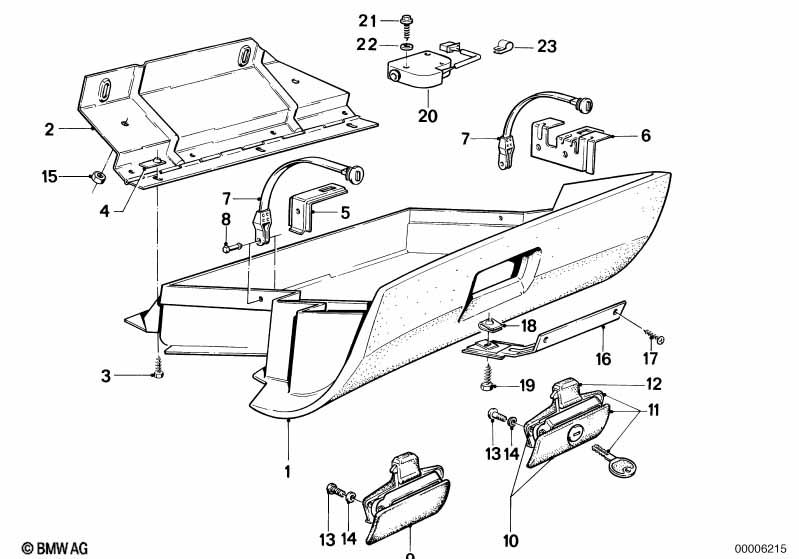

This Glove box technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Glove box | ANTHRAZIT | 1 | 51161884243 | $354.17 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO EDITION | ||||||||||
| 01 | Glove box | ANTHRAZIT | 1 | 51161884243 | $354.17 | Shop at ECS Tuning | ||||
| 01 | Glove box | SILBER | 1 | 51168129381 | $342.27 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box | INDIGO | 1 | 51168129382 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hinge | 1 | 51161916022 | $11.18 | Shop at ECS Tuning | |||||
| 04 | Nut | 3 | 51161848715 | $0.18 | ENDED | Shop at ECS Tuning | ||||
| 06 | Supporting bracket | 1 | 09/1983 | 51161913891 | $1.62 | Shop at ECS Tuning | ||||
| 07 | Joint link | 1 | 51161904471 | $8.70 | ENDED | Shop at ECS Tuning | ||||
| 08 | Pin | 2 | 51161828956 | $0.48 | ENDED | Shop at ECS Tuning | ||||
| 09 | Locking kit | 1 | 51161848873 | $36.51 | Shop at ECS Tuning | |||||
| 10 | Catch with code | 1 | 51161853004 | $74.05 | ENDED | Shop at ECS Tuning | ||||
| 10 | Rep.kit f lock cylinder | 1 | 51169061387 | $36.59 | Shop at ECS Tuning | |||||
| 11 | Rep.kit f lock cylinder | 1 | 51169061387 | $36.59 | Shop at ECS Tuning | |||||
| 12 | Catch upper part | 1 | 51161849472 | $11.28 | Shop at ECS Tuning | |||||
| 12 | Catch upper part | 1 | 51161955759 | $11.17 | Shop at ECS Tuning | |||||
| 13 | Fillister head screw | M5X12-ZN | 2 | 07119907627 | $0.43 | Shop at ECS Tuning | ||||
| 14 | Wave washer | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Plastic capnut with washer | D=18MM | 3 | 01/1993 | 51161943122 | $0.39 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Washer | 3 | 01/1993 | 51161943120 | $0.32 | ENDED | Shop at ECS Tuning | |||
| 15 | Plastic nut for coarse threaded pin | M6 | 3 | 07147336362 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Washer | 3 | 51161943120 | $0.32 | ENDED | Shop at ECS Tuning | ||||
| 15 | Hex nut with plate | M6 | 2 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 16 | Catch | 1 | 51161913890 | $3.49 | ENDED | Shop at ECS Tuning | ||||
| 17 | Fillister head self-tapping screw | ST4,2X13-Z2 | 2 | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 17 | Fillister head self-tapping screw | ST4,8X13-Z1 | 2 | 07119907956 | $0.18 | Shop at ECS Tuning | ||||
| 17 | Oval-head self-tapping screw, black | B3.9X16 | 2 | 51131879479 | $0.22 | Shop at ECS Tuning | ||||
| 18 | Body nut | ST6,3-1-ZNS3 | 1 | 07129904231 | Shop at ECS Tuning | |||||
| 18 | Body nut | M6 | 1 | 07147133884 | $0.36 | Shop at ECS Tuning | ||||
| 19 | Hexagon sheet-metal bolt | ST6,3X16-R-U2-Z | 1 | 07119905017 | $0.38 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
