Glove box for BMW 5 Series E34 525td (1995)

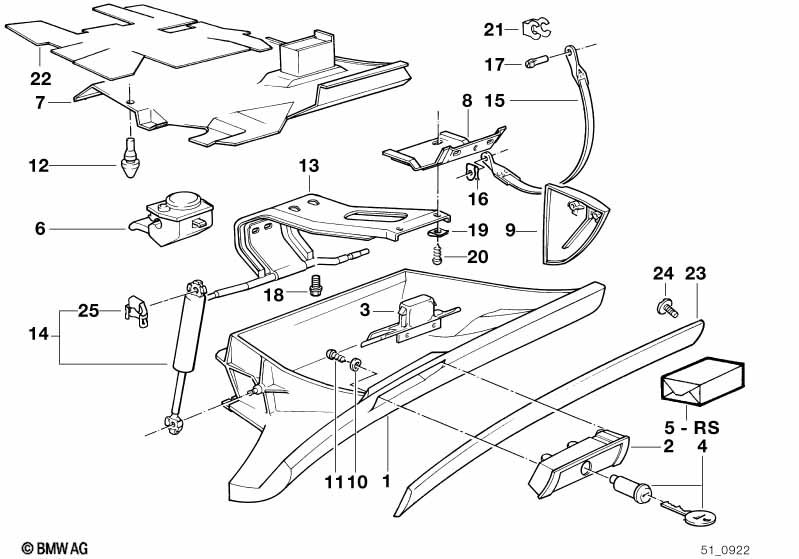

This Glove box technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Glove box vinyl | SCHWARZ | 1 | 51161978010 | $244.57 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box vinyl | KARMESINROT | 1 | 09/1988 | 51168117080 | $248.87 | ENDED | Shop at ECS Tuning | ||
| 01 | Glove box vinyl | SILBERGRAU | 1 | 09/1990 | 51168137661 | $244.57 | Shop at ECS Tuning | |||
| 01 | Glove box vinyl | ULTRAMARIN | 1 | 09/1990 | 51168137663 | $244.57 | ENDED | Shop at ECS Tuning | ||
| 01 | Glove box vinyl | PERGAMENT | 1 | 09/1990 | 51168137665 | $244.57 | ENDED | Shop at ECS Tuning | ||
| 01 | Glove box vinyl | SILBERGRAU HELL | 1 | 09/1990 | 51168138224 | $205.00 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Wooden trim |
=Yes |
|||||||||
| 01 | Glove box vinyl | SILBERGRAU | 1 | 51162252591 | $244.57 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box vinyl | SCHWARZ | 1 | 51168107980 | $244.57 | Shop at ECS Tuning | ||||
| 01 | Glove box vinyl | KARMESINROT | 1 | 51168107984 | $248.87 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box vinyl | ULTRAMARIN | 1 | 09/1990 | 51168137671 | $248.87 | ENDED | Shop at ECS Tuning | ||
| 01 | Glove box vinyl | PERGAMENT | 1 | 09/1990 | 51168137673 | $244.57 | ENDED | Shop at ECS Tuning | ||
| 01 | Glove box vinyl | SILBERGRAU HELL | 1 | 09/1990 | 51168138226 | $205.00 | ENDED | Shop at ECS Tuning | ||
| 02 | Catch lower part | 1 | 51161946513 | $29.20 | Shop at ECS Tuning | |||||
| 03 | Catch upper part | 1 | 51161849472 | $11.28 | Shop at ECS Tuning | |||||
| 04 | Rep.kit f lock cylinder | 1 | 51169061388 | $36.91 | Shop at ECS Tuning | |||||
| 05 | Rep.kit f lock cylinder | 1 | 51169061388 | $36.91 | Shop at ECS Tuning | |||||
| 06 | Supporting bracket | 2 | 51161944479 | $4.90 | Shop at ECS Tuning | |||||
| 07 | Cover | 1 | 51161946120 | $61.60 | Shop at ECS Tuning | |||||
| For vehicles with Wooden trim |
=Yes |
|||||||||
| 07 | Covering glove box | 1 | 51168102499 | $16.78 | Shop at ECS Tuning | |||||
| 08 | Catch | 1 | 51451944569 | $5.35 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO WOODEN COVER | ||||||||||
| 08 | Catch | 1 | 51168181914 | $6.37 | Shop at ECS Tuning | |||||
| 09 | Trim panel | SCHWARZ | 1 | 51458102602 | $21.76 | Shop at ECS Tuning | ||||
| 09 | Trim panel | KARMESINROT | 1 | 09/1988 | 51458117130 | $42.13 | ENDED | Shop at ECS Tuning | ||
| 09 | Trim panel | SILBERGRAU | 1 | 09/1990 | 51458138198 | $20.37 | ENDED | Shop at ECS Tuning | ||
| 09 | Trim panel | ULTRAMARIN | 1 | 09/1990 | 51458138200 | ENDED | Shop at ECS Tuning | |||
| 09 | Trim panel | PERGAMENT | 1 | 09/1990 | 51458138202 | $20.37 | ENDED | Shop at ECS Tuning | ||
| 09 | Trim panel | SILBERGRAU HELL | 1 | 09/1990 | 51458138466 | $17.74 | ENDED | Shop at ECS Tuning | ||
| 10 | Wave washer | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Fillister head screw | M5X12-ZN | 2 | 07119907627 | $0.43 | Shop at ECS Tuning | ||||
| 12 | Rubber buffer | 2 | 51451936105 | $0.50 | Shop at ECS Tuning | |||||
| 13 | Carrier | 1 | 51161944565 | $21.72 | Shop at ECS Tuning | |||||
| 14 | Absorber | 25N | 1 | 51161954684 | $34.68 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Airbag for front passenger |
=Yes |
|||||||||
| 14 | Absorber | 1 | 51162236484 | $28.75 | Shop at ECS Tuning | |||||
| 15 | Joint link | 1 | 51161938857 | $3.43 | Shop at ECS Tuning | |||||
| 16 | Clamp | B6 | 1 | 07129934911 | $0.38 | Shop at ECS Tuning | ||||
| 17 | Pin | 1 | 51161828956 | $0.48 | ENDED | Shop at ECS Tuning | ||||
| 18 | Lock bolt | 3 | 51321928275 | $0.41 | Shop at ECS Tuning | |||||
| 19 | Body nut | ST4,2-1-ZNS3 | 2 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 20 | Fillister head self-tapping screw | ST4,2X13-Z2 | 2 | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 21 | Spacer | 2 | 51231906523 | $0.30 | Shop at ECS Tuning | |||||
| 22 | Sound insulation | 1 | 51488107535 | $4.02 | ENDED | Shop at ECS Tuning | ||||
| 24 | Saucer-head screw | 4 | 51168107577 | $0.25 | Shop at ECS Tuning | |||||
| 25 | Circlip | 2 | 51161928873 | $1.34 | Shop at ECS Tuning | |||||
