Storing partition-ashtray front for BMW 3 Series E21 315 (1982)

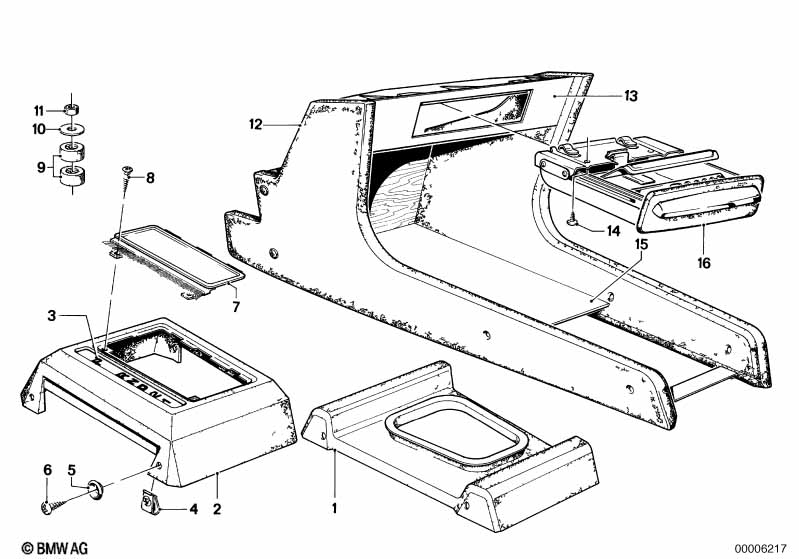

This Storing partition-ashtray front technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 315. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Frame gear lever console | 1 | 04/1981 | 51161881559 | $31.25 | Shop at ECS Tuning | ||||
| 05 | Hollow washer | 4 | 51451804974 | $2.62 | Shop at ECS Tuning | |||||
| 06 | Recessed oval head sheet-metal screw | ST4,2X32 | 4 | 07119902475 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 09 | Spacer | 2 | 34321108306 | $0.61 | Shop at ECS Tuning | |||||
| 10 | Washer | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 11 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Storing partition | 1 | 08/1977 | 51161882748 | $188.60 | ENDED | Shop at ECS Tuning | |||
| 13 | Cover | 1 | 08/1979 | 51161873022 | ENDED | Shop at ECS Tuning | ||||
| 14 | Screw | 2 | 07119904170 | $0.17 | Shop at ECS Tuning | |||||
| 15 | Depositing box bottom panel | 1 | 08/1977 | 51161857999 | $15.73 | ENDED | Shop at ECS Tuning | |||
| 16 | Ashtray front | 1 | 51161826899 | $286.29 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
