Storing partition for BMW 5 Series E12 525 (1981)

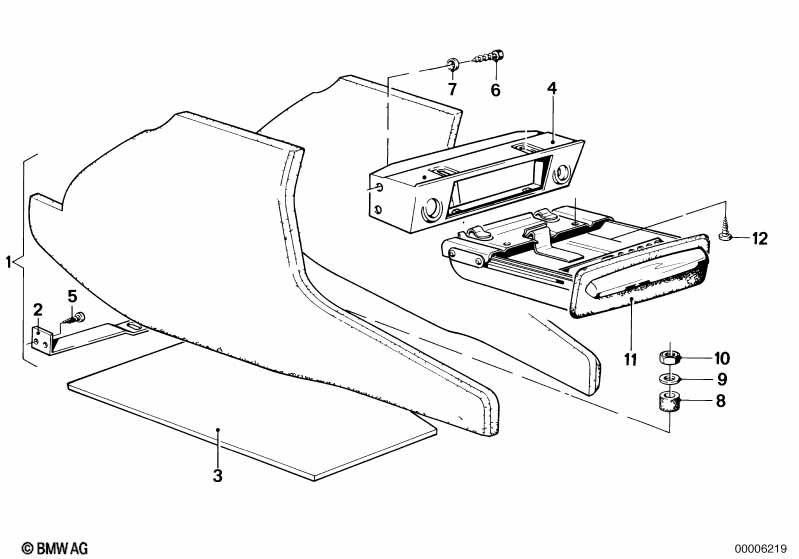

This Storing partition technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Storing partition | 1 | 02/1977 | 51161855227 | $215.39 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO REAR COMPARTMENT HEATING | ||||||||||
| 01 | Storing partition | 1 | 02/1977 | 51161855227 | $215.39 | ENDED | Shop at ECS Tuning | |||
| 02 | Bow | 1 | 02/1977 | 51161857219 | ENDED | Shop at ECS Tuning | ||||
| 03 | Depositing box bottom panel | 1 | 08/1979 | 51161862025 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO REAR COMPARTMENT HEATING | ||||||||||
| 03 | Depositing box bottom panel | 1 | 02/1977 | 51161862025 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cover | 1 | 02/1977 | 51161857043 | $15.62 | ENDED | Shop at ECS Tuning | |||
| 05 | Fillister head screw | M5X12-ZN | 2 | 02/1977 | 07119907627 | $0.43 | Shop at ECS Tuning | |||
| 06 | Recessed oval head sheet-metal screw | ST2,9X25 | 2 | 02/1977 | 07119902428 | $0.18 | Shop at ECS Tuning | |||
| 06 | Hex head screw | ST4,2X13-C | 6 | 02/1977 | 07119916804 | $0.09 | Shop at ECS Tuning | |||
| 07 | Hollow washer | 2 | 02/1977 | 51187680093 | $0.23 | ENDED | Shop at ECS Tuning | |||
| 08 | Spacer | 2 | 02/1977 | 34321108306 | $0.61 | Shop at ECS Tuning | ||||
| 09 | Washer | 6,4 | 1 | 02/1977 | 06/1981 | 07119936425 | $0.09 | ENDED | Shop at ECS Tuning | |
| 10 | Hex nut | M6 | 1 | 02/1977 | 08/1996 | 23112322368 | $0.38 | ENDED | Shop at ECS Tuning | |
| 11 | Ashtray front | 1 | 02/1977 | 51161864987 | $52.66 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex head screw | ST4,8X25 | 2 | 02/1977 | 07119901334 | $0.45 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
