Storing partition for BMW 7 Series E23 732i (1982)

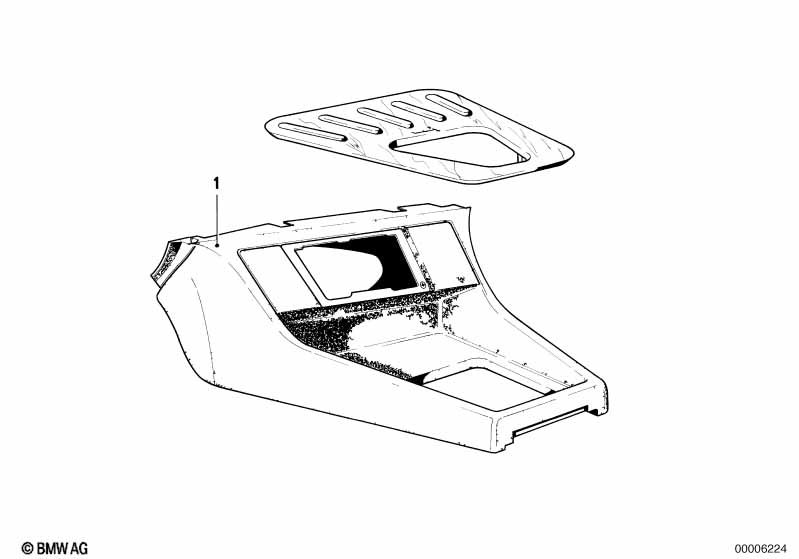

This Storing partition technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Storing partition | MOCCA | 1 | 09/1982 | 51161876454 | ENDED | Shop at ECS Tuning | |||
| 01 | Storing partition | PERGAMENT | 1 | 09/1982 | 51161876455 | ENDED | Shop at ECS Tuning | |||
| 01 | Storing partition | ANTHRAZIT | 1 | 51161856789 | ENDED | Shop at ECS Tuning | ||||
| 01 | Storing partition | FARNGRUEN | 1 | 51161856790 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 732i Storing partition?
- This technical diagram illustrates the Storing partition within the Vehicle trim group for the 7 Series E23 732i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Storing partition (Part #51161876454).
- Which models use the hardware listed in this Storing partition?
- The hardware and components featured in the Storing partition are specific to the 7 Series E23 732i produced during 1982. These technical specifications ensure that parts like the Storing partition (51161876454) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Storing partition assembly?
- Each item in the Storing partition corresponds to the numbered list below the illustration. For the 7 Series E23 732i, you can identify the Storing partition by locating its position on the schematic, which then links to the official BMW part number 51161876454 for the Vehicle trim section.
