Storing partition-ashtray front for BMW 6 Series E24 633CSi (1979)

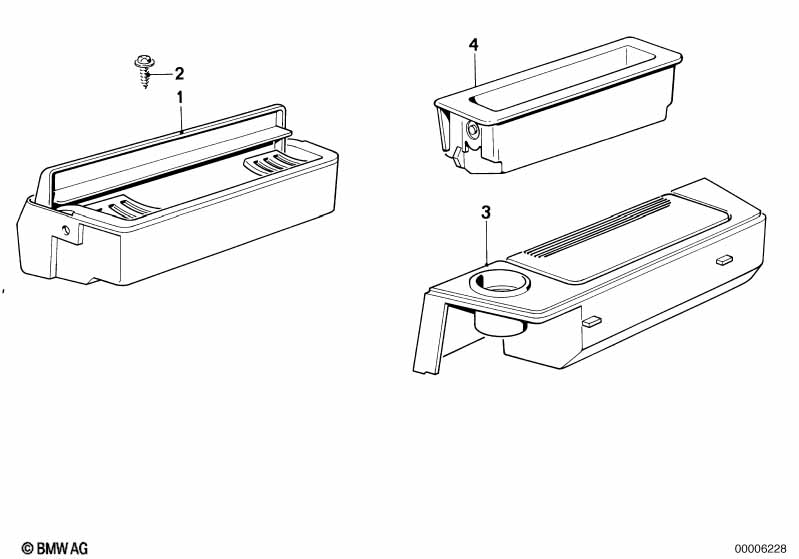

This Storing partition-ashtray front technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ashtray front | 1 | 05/1982 | 51161839412 | $80.27 | ENDED | Shop at ECS Tuning | |||
| 02 | Recessed oval head sheet-metal screw | ST3,5X19 | 1 | 05/1982 | 07119902574 | $0.25 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
