Storing partition-ashtray front for BMW 7 Series E23 735i (1986)

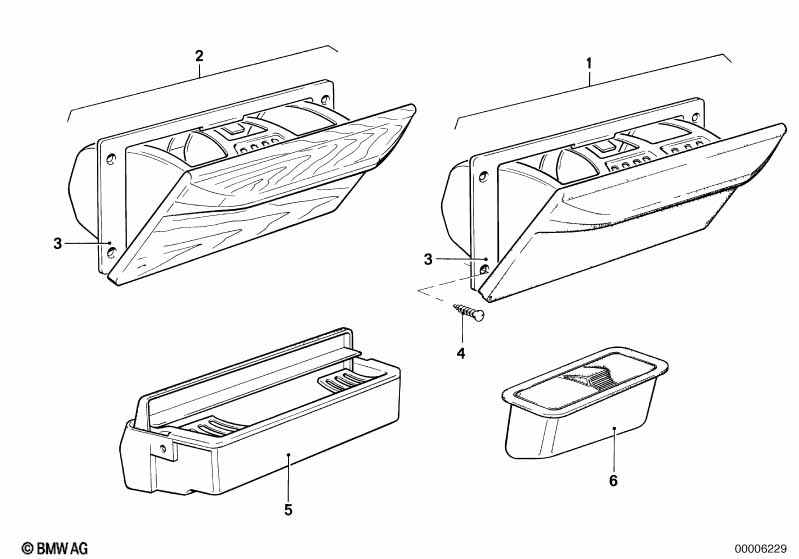

This Storing partition-ashtray front technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Housing | 1 | 51161874586 | $8.67 | ENDED | Shop at ECS Tuning | ||||
| 04 | Recessed oval head sheet-metal screw | ST3,5X9,5 | 4 | 07119902524 | $0.82 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 735i Storing partition-ashtray front?
- This technical diagram illustrates the Storing partition-ashtray front within the Vehicle trim group for the 7 Series E23 735i produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Housing (Part #51161874586).
- Which models use the hardware listed in this Storing partition-ashtray front?
- The hardware and components featured in the Storing partition-ashtray front are specific to the 7 Series E23 735i produced during 1986. These technical specifications ensure that parts like the Housing (51161874586) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Storing partition-ashtray front assembly?
- Each item in the Storing partition-ashtray front corresponds to the numbered list below the illustration. For the 7 Series E23 735i, you can identify the Housing by locating its position on the schematic, which then links to the official BMW part number 51161874586 for the Vehicle trim section.
