Storing partition mounting parts for BMW 7 Series E23 733i (1984)

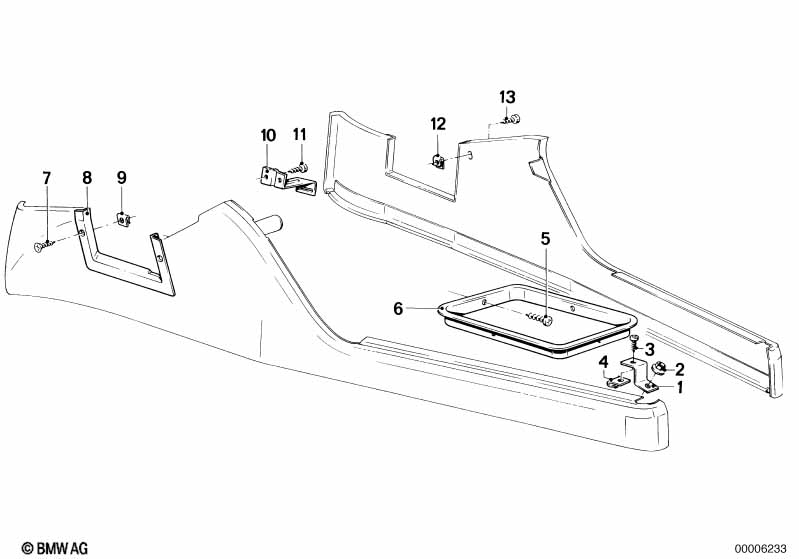

This Storing partition mounting parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support | 1 | 51161847760 | $1.70 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex nut with plate | M6 | 1 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 02 | Self-locking hex nut | M6 | 1 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 03 | Hex head screw | ST4,8X16-ZNS3 | 1 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Plug-in nut | M5 | 1 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 07 | Recessed oval head sheet-metal screw | ST2,9X13 | 4 | 07119902412 | $1.30 | Shop at ECS Tuning | ||||
| 08 | Cover | 2 | 51161848458 | $1.27 | ENDED | Shop at ECS Tuning | ||||
| 09 | Body nut | ST2,9-1 | 4 | 07129901631 | ENDED | Shop at ECS Tuning | ||||
| 10 | Bracket left | 1 | 51161854005 | ENDED | Shop at ECS Tuning | |||||
| 10 | Bracket right | 1 | 51161854006 | ENDED | Shop at ECS Tuning | |||||
| 11 | Fillister head self-tapping screw | ST2,9X9,5 | 4 | 07119907707 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Body nut | ST3,5-1-ZNS | 5 | 07129901634 | $0.18 | Shop at ECS Tuning | ||||
| 13 | Fillister head self-tapping screw | ST3,5X13 | 5 | 07119906720 | $0.47 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 733i Storing partition mounting parts?
- This technical diagram illustrates the Storing partition mounting parts within the Vehicle trim group for the 7 Series E23 733i produced during 1984. It provides a detailed exploded view of the components, identifying key parts such as the Support (Part #51161847760).
- Which models use the hardware listed in this Storing partition mounting parts?
- The hardware and components featured in the Storing partition mounting parts are specific to the 7 Series E23 733i produced during 1984. These technical specifications ensure that parts like the Support (51161847760) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Storing partition mounting parts assembly?
- Each item in the Storing partition mounting parts corresponds to the numbered list below the illustration. For the 7 Series E23 733i, you can identify the Support by locating its position on the schematic, which then links to the official BMW part number 51161847760 for the Vehicle trim section.
